VisionView

(click to switch excl/incl VAT)

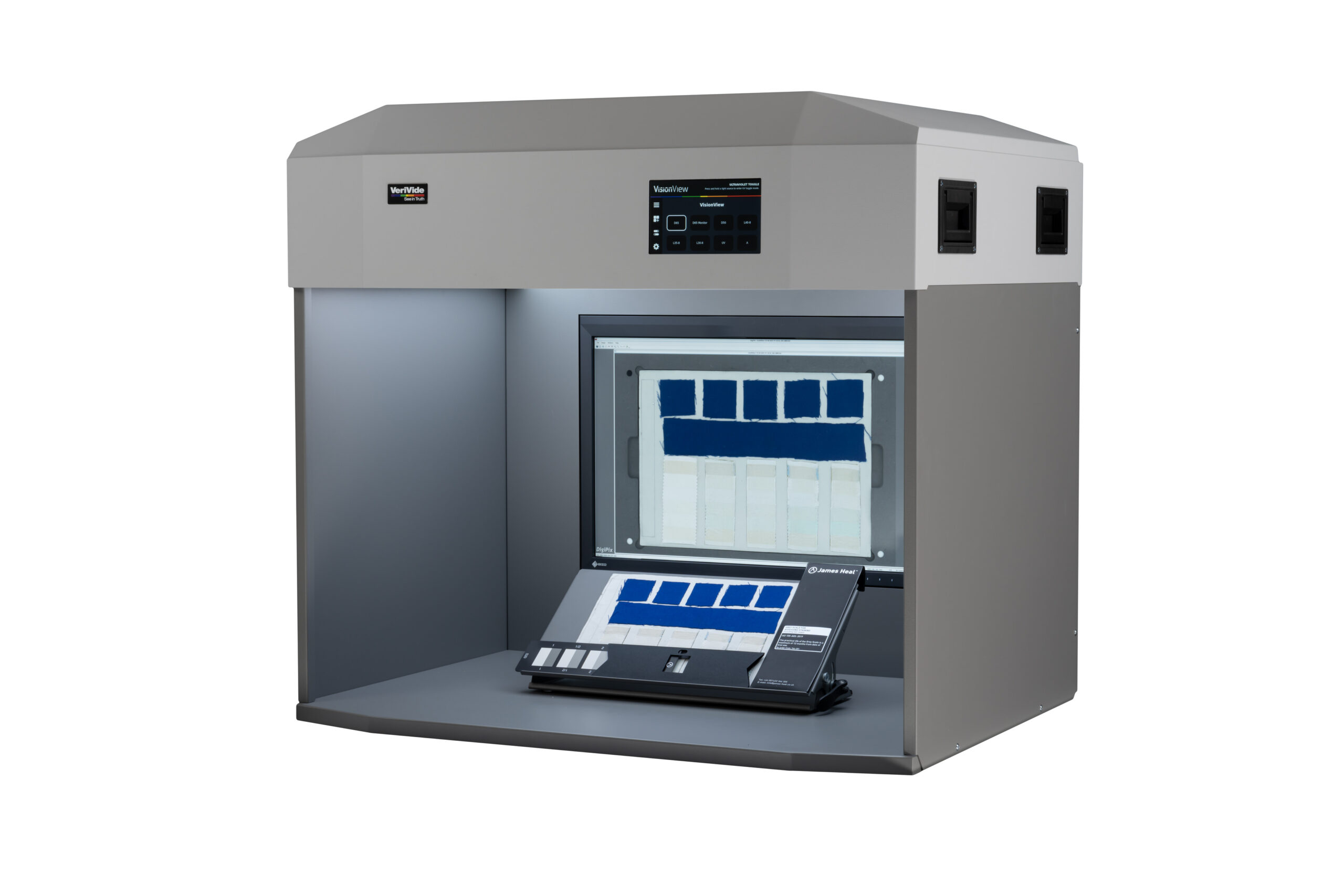

Combining visual and digital colour workflows in a single LED light booth.

The all-LED tuneable VisionView technology allows for visual and digital colour assessment to be performed, offering immediate efficiency improvements and cost savings using the latest generation of Eizo monitors with inbuilt calibrator. VisionView greatly extends the reach of digital colour communication within supply chains.

VisionView offers the best of both worlds combining a VeriVide all-LED tunable UltraView light booth with a DigiEye viewing station.

Surpasses all major standards for visual evaluation including ASTM, AATCC, BSI, DIN, SAE and ISO

CIE D65, D65 Monitor, CIE D50, D50-P1, D50-P2, L40-8, L35-8, L30-8, L31-9, CIE inc A, Horizon, UV

Aerospace
Apparels
Automotive
Building Materials
Cosmetics & Personal Care
Food & Drink
Graphics Prints & Inks
Homeware
Medical & Pharmaceutical
Packaging
Photography
Plastics
Technical Textiles

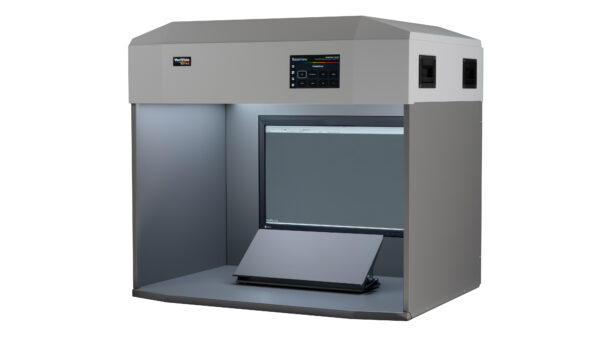

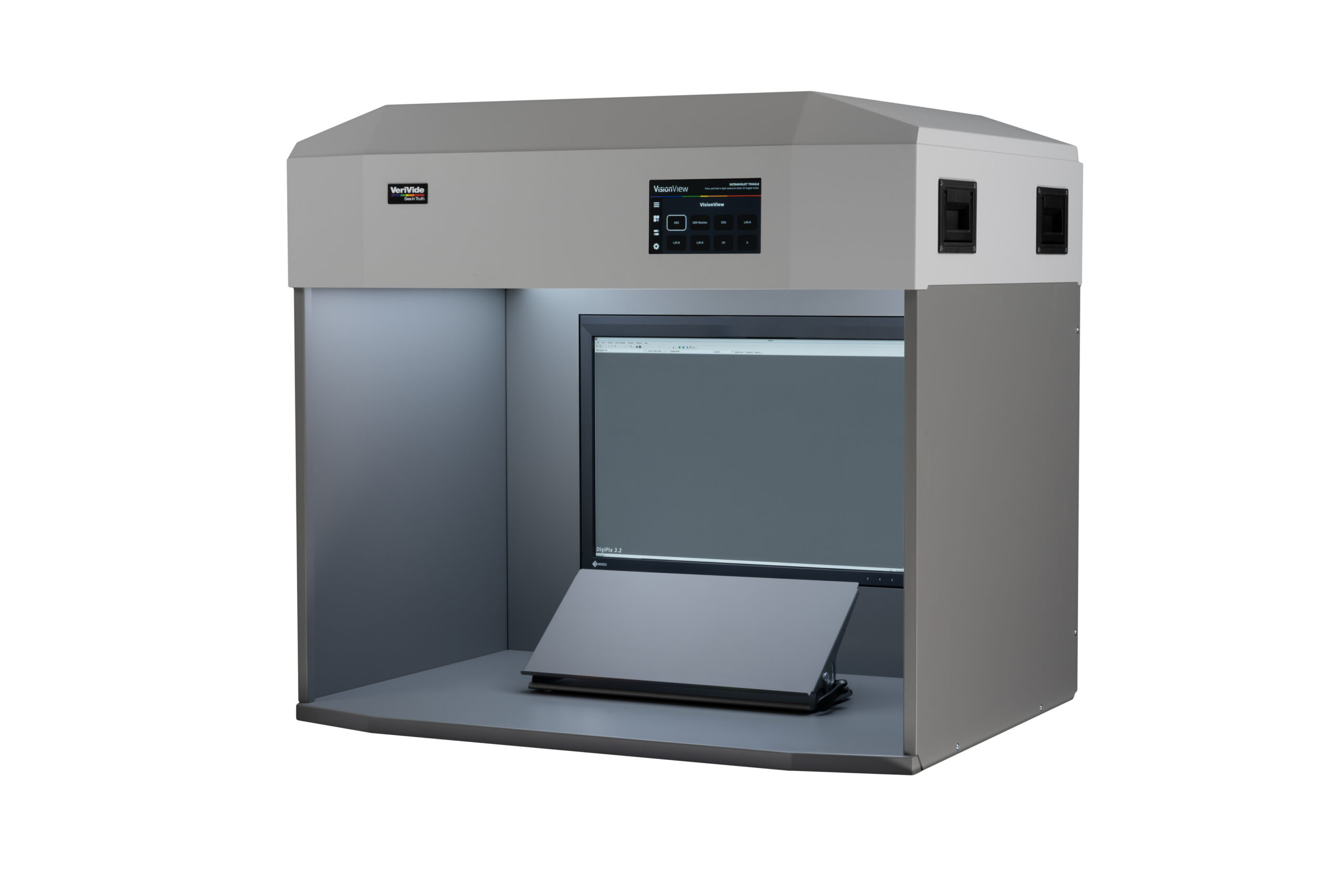

VisionView is in essence the best of both worlds combining the VeriVide all-LED tunable UltraView light booth for colour assessment with a DigiEye viewing station.

Eizo CG2700S-2K monitor

The 2K monitor that provides every detail with exceptional colour accuracy.

  • Size: 27-inch (68.5 cm) with a viewable image size (H x V) 596.7 x 335.7 mm.
  • Resolution: (2K WQHD) 2560 x 1440 (16:9 aspect ratio).
  • Pixel Density: 109 ppi.
  • Colour: DisplayPort, HDMI: 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT).
  • Calibration: Built in Sensor.



For further specifications, please call the VeriVide technical team.

To understand more about VeriVide’s VisionView light booth watch our informative video.

VisionView is in essence the best of both worlds combining the VeriVide all-LED tunable UltraView light booth for colour assessment with a DigiEye viewing station.

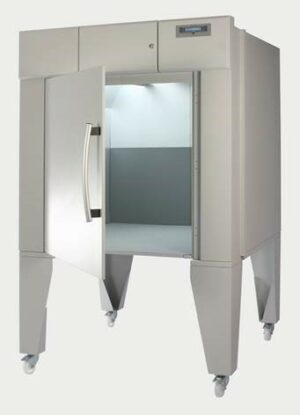

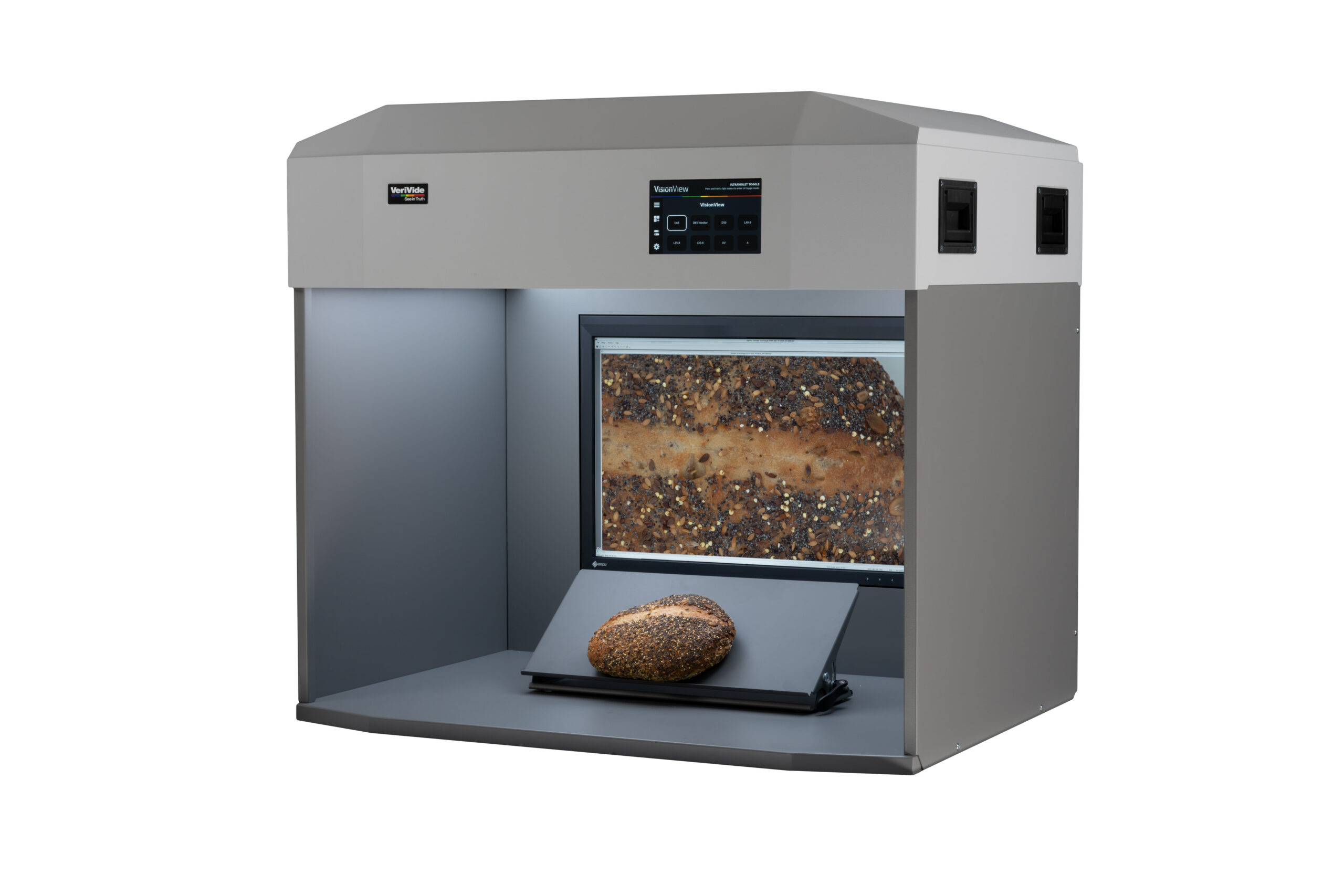

In the same operation physical samples can be assessed visually in precisely controlled LED viewing conditions and compared with a digital standard image taken in DigiEye imaging system.

Within the VisionView light booth, colour data can be communicated to or from anywhere in the world for better supply chain integration. VisionView combines proven VeriVide technology to save space, time and cost.

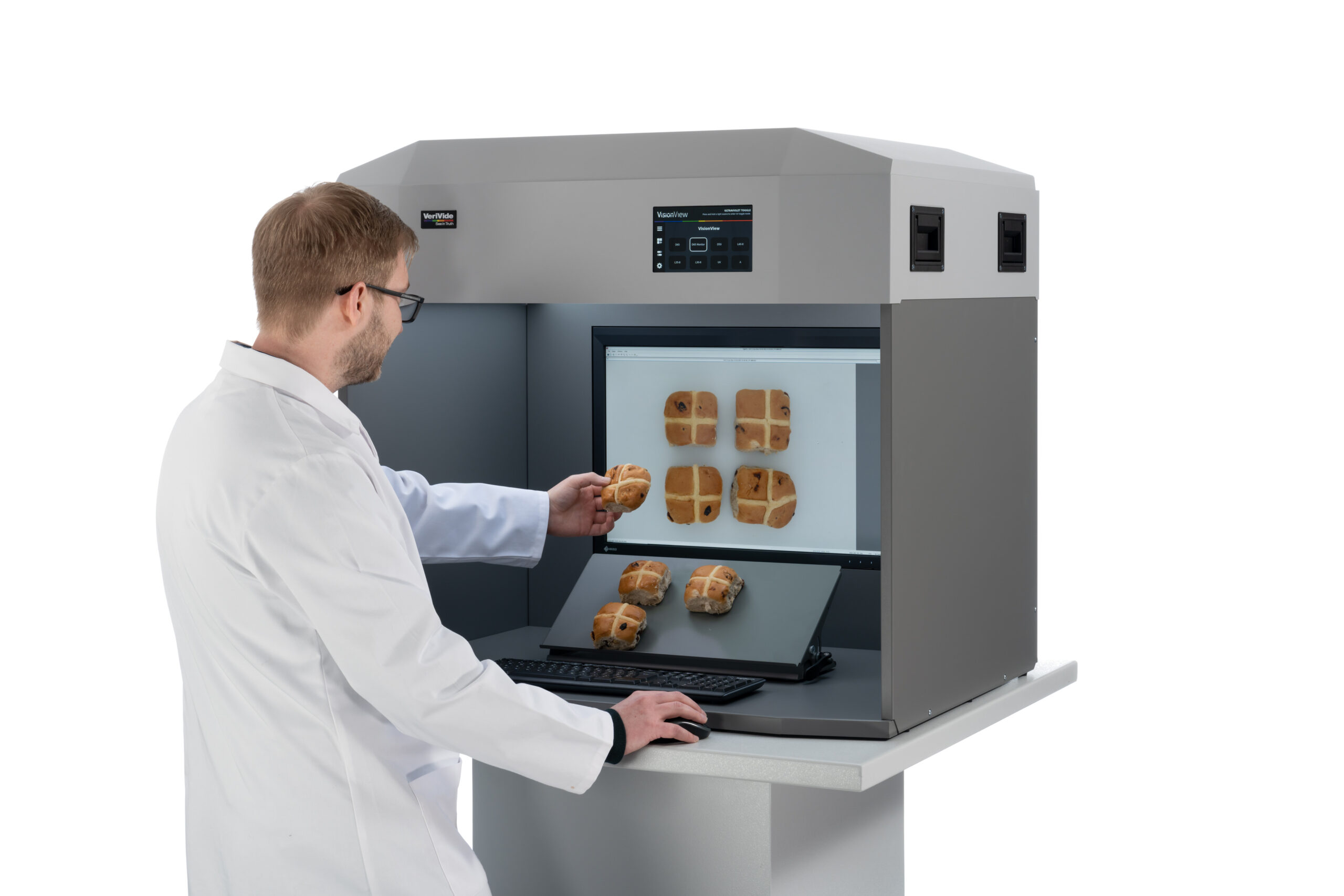

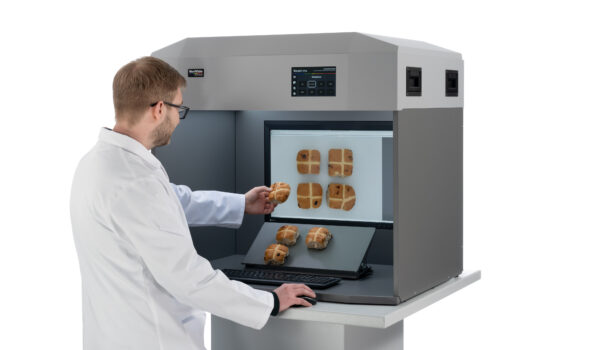

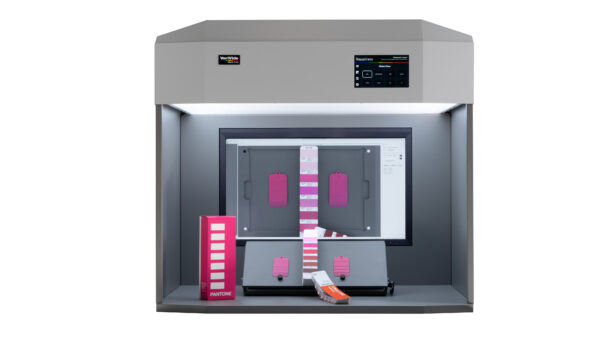

VisionView light booth – Comparing physical product to the on screen image

Although intended for use with DigiEye and DigiView software,  the screen within the VisionView system can be connected to any third party software.

This may benefit other industries such as printing and packaging as well as photography retouching,  videography and filmmaking, where product shots need to be colour corrected or videos need colour grading against actual physical colour samples provided by the customer.

Pre programmed LED light sources in one all LED VisionView light booth

The VisionView light booth for visual and digital colour assessment has the ability to be programmed with multiple Brand and Retailer light sources with the ability to have up to 8 light sources per switch set.

The standard configuration in our all LED light booths comes with:

Our A rated CIE D65 and CIE D50 Artificial Daylight illuminant
CIE D65 or CIE D50 monitor illuminant for on screen colour matching
CIE illuminant A
Horizon H
Multiple POS LED options including L40-8 (4000K), L35-8 (3500K), L30-8 (3000K) and L31-9 (3100K)
VeriVide’s filtered ultraviolet LED technology.
D50 P1 and P2 for ISO3664:2009

Features

  • All-LED tunable light sources.
  • A rated CIE D65 and D50 illuminants.
  • ISO 3664 D50-P1 and D50P-2
  • CIE illuminant A.
  • Horizon
  • Multiple POS LED options available including pre-programmed as standard: L40-8 (4000K), L35-8 (3500K), L30-8 (3000K) and L31-9 (3100K).
  • VeriVide’s filtered ultraviolet LED technology allows precise assessment of OBA content and tint by eliminating unwanted visible light.

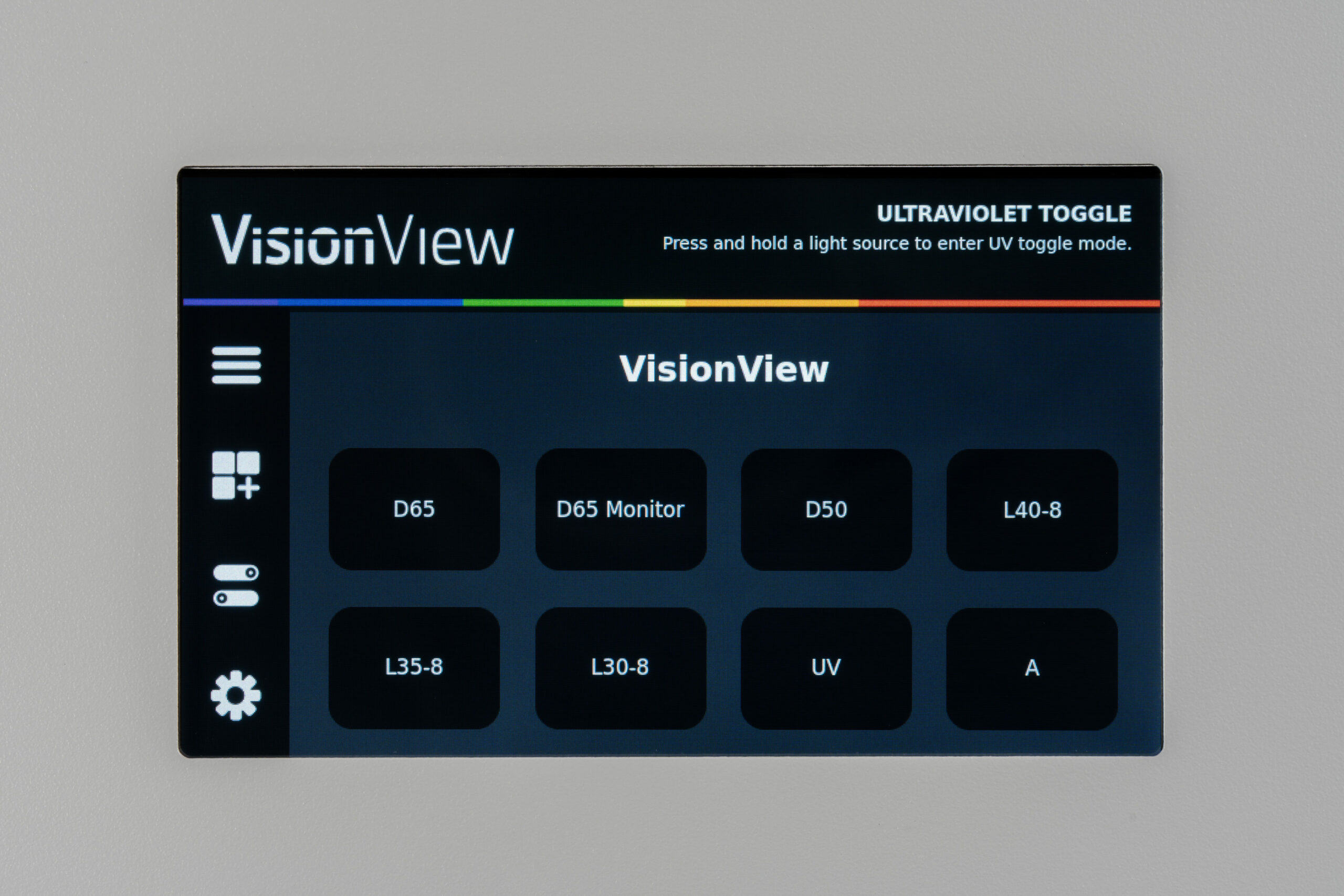

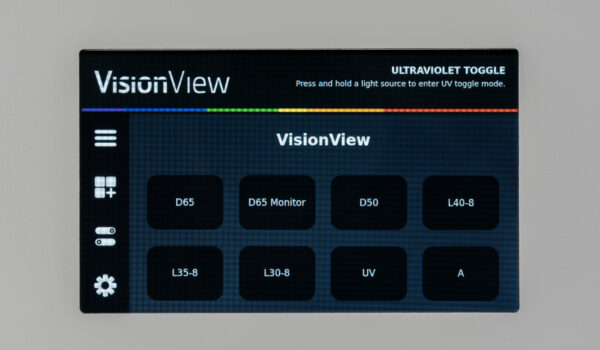

  • UV toggle on all sources to bring ultraviolet in and out of the light source.

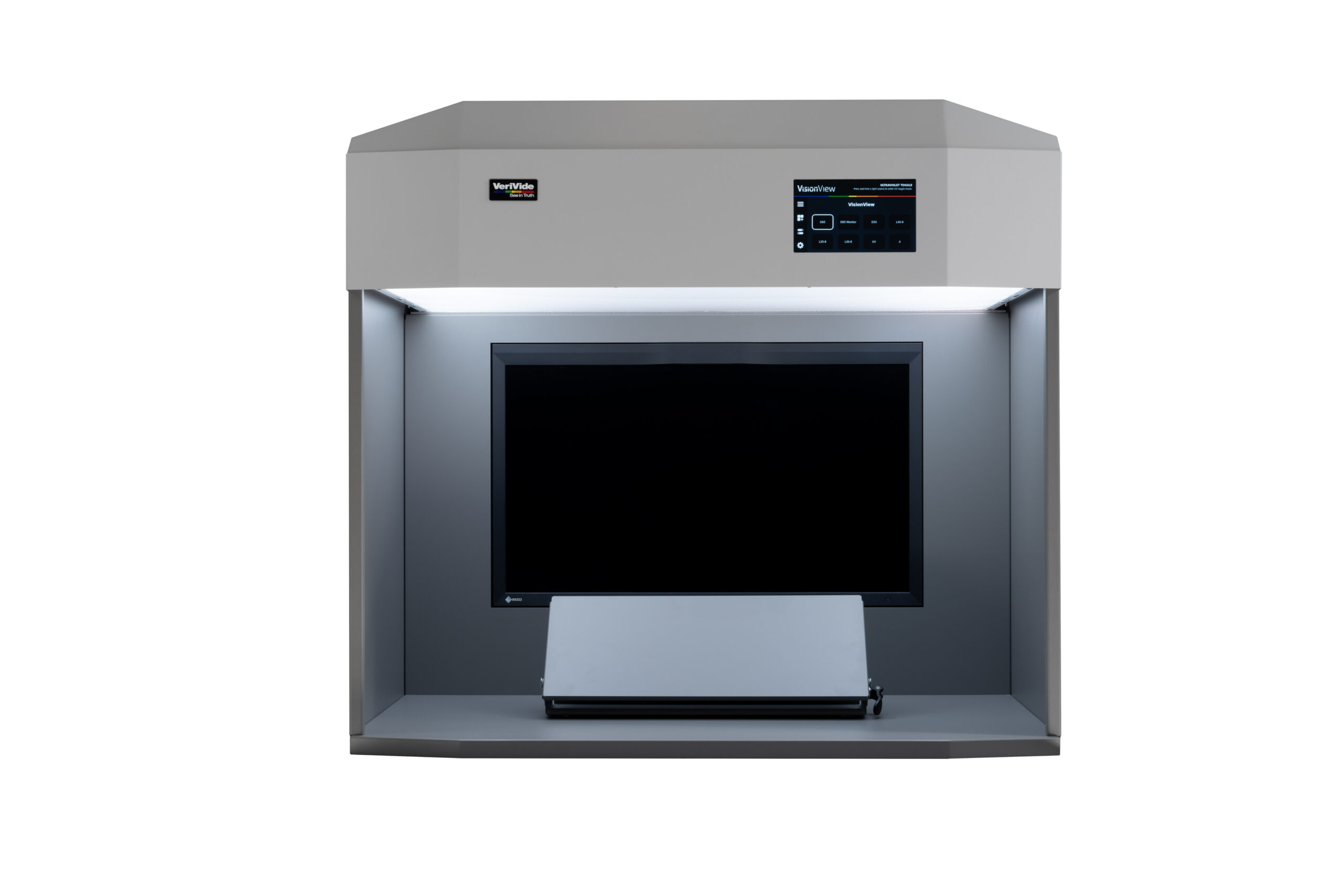

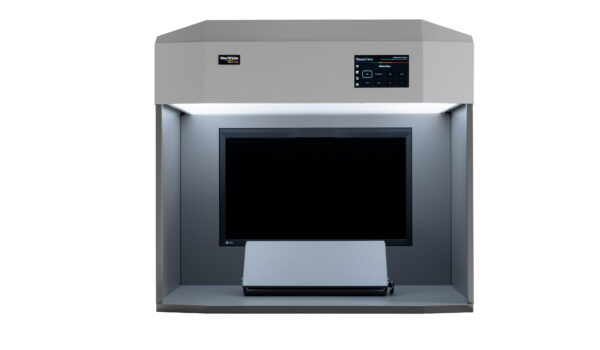

  • Inbuilt Eizo CG2700S calibrated flush mounted monitor.
  • VeriVide Viewing Table as standard.
  • The VeriVide LED CIE D65 or CIE D50 artificial daylight can be dimmed to match the on-screen images.
  • Surpasses all major standards for visual evaluation including ASTM, AATCC, BSI, DIN, SAE and ISO.

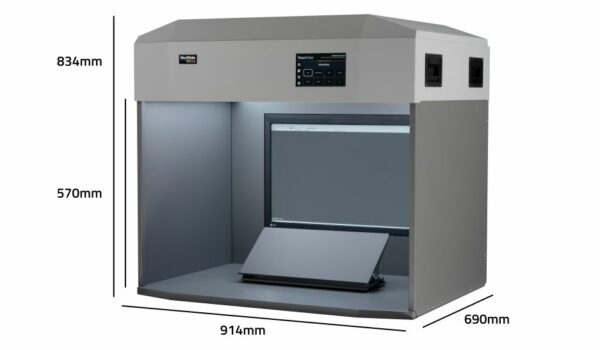

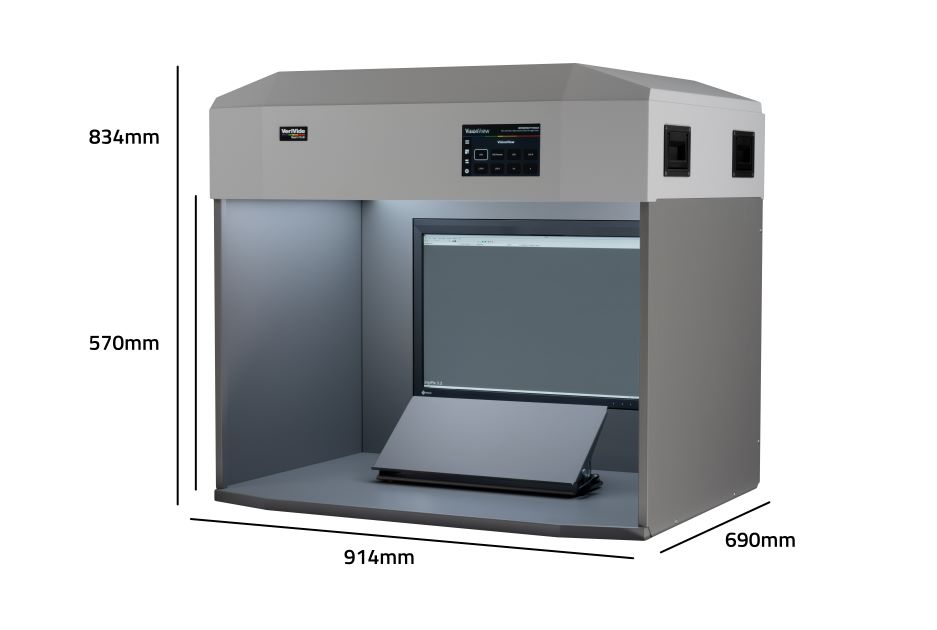

Dimensions

VisionView

Dimensions (mm) Width Height Depth
Overall 914 834 700
Viewing Area 866 570 -

Test Methods & Standards

  • AATCC EP9 :2021
  • ASTM D1729
  • BS 950-1
  • BS 950-2
  • CIE S 012/E
  • DIN 6173
  • ISO 13076:2019
  • ISO 23603:2005
  • ISO 3664:2009
  • ISO 3668:2017

Datasheets

VisionView Download
