UltraView

(click to switch excl/incl VAT)

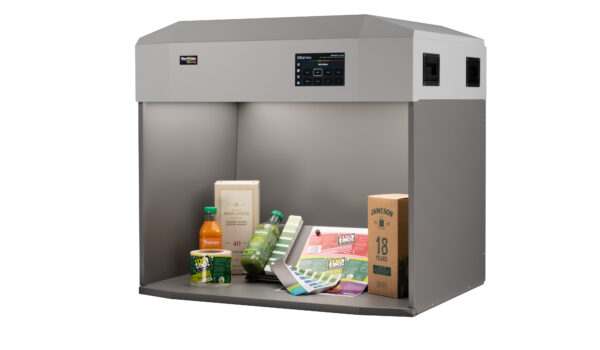

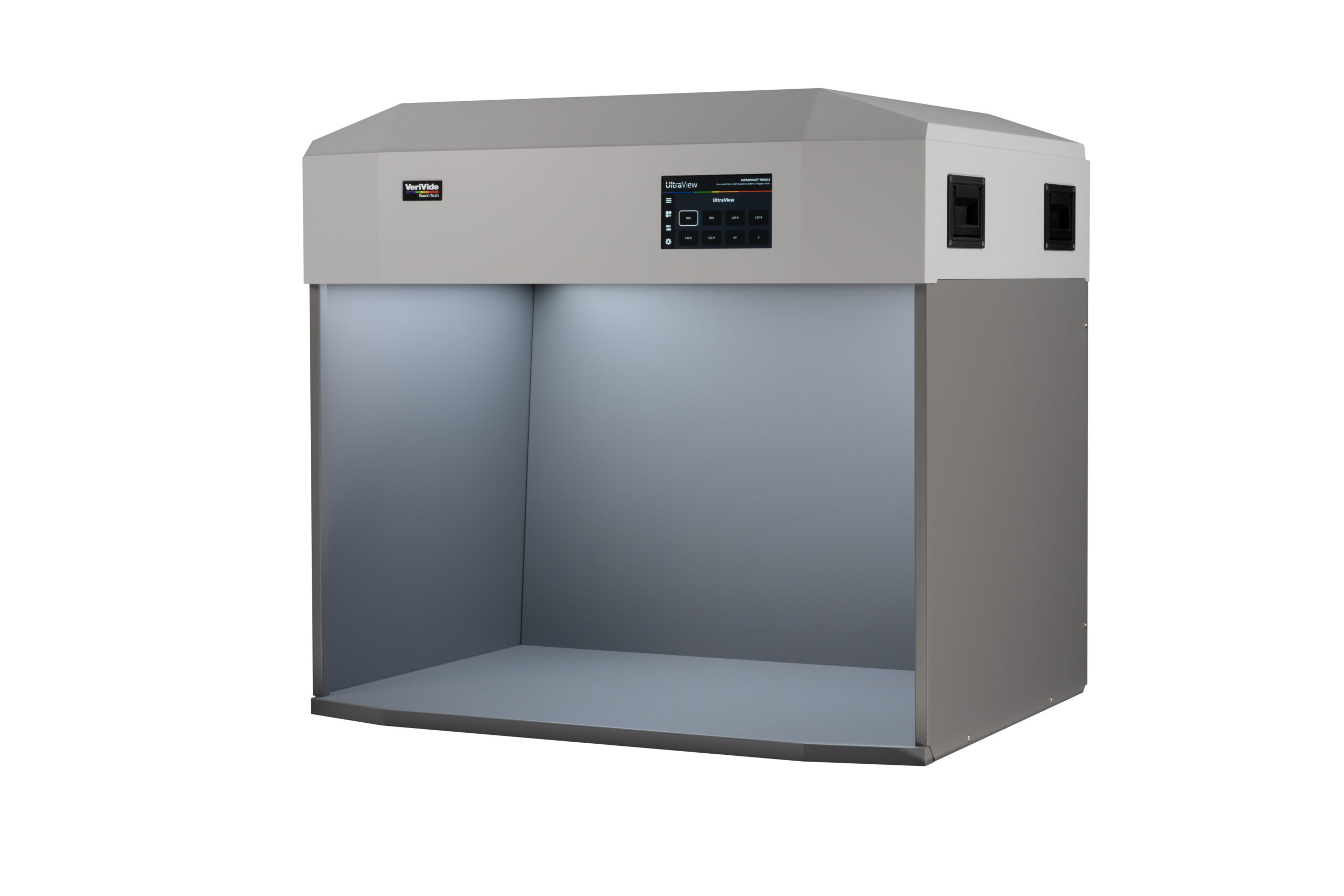

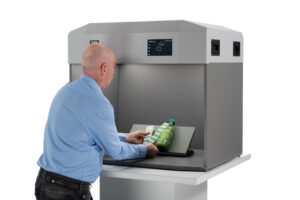

The all-new Industry leading tuneable LED Technology by VeriVide.

The dawning of a new era in visual colour assessment with a game changing all-LED light booth, for a greater level of control and repeatability across your global supply chain.

As the UltraView light booth is tuneable it gives brands the benefit of being able to update their point of sale as their stores change, meaning light booths in the supply chain only need re-programming instead of being replaced.

Multi brand and Retailer light sources in one colour assessment light booth.

Suppliers to brands and retailers historically had to purchase multiple light cabinets to cover different retailer lighting needs. However, this is no longer the case, due to the developments in technology, suppliers can now purchase one UltraView and have all their different principle point of sale light sources pre-programmed.

Configured with all-LED tunable calibrated light sources as standard: CIE D65, CIE D50, D50-P1, D50-P2, L40-8, L35-8, L30-8, L31-9, CIE illuminant A, Horizon, UV

Surpasses all major standards for visual evaluation, including ASTM, AATCC, BSI, DIN, SAE and ISO.

Aerospace
Apparels
Automotive
Building Materials
Cosmetics & Personal Care
Food & Drink
Graphics Prints & Inks
Homeware
Medical & Pharmaceutical
Packaging
Paints & Coatings
Photography
Plastics
Technical Textiles

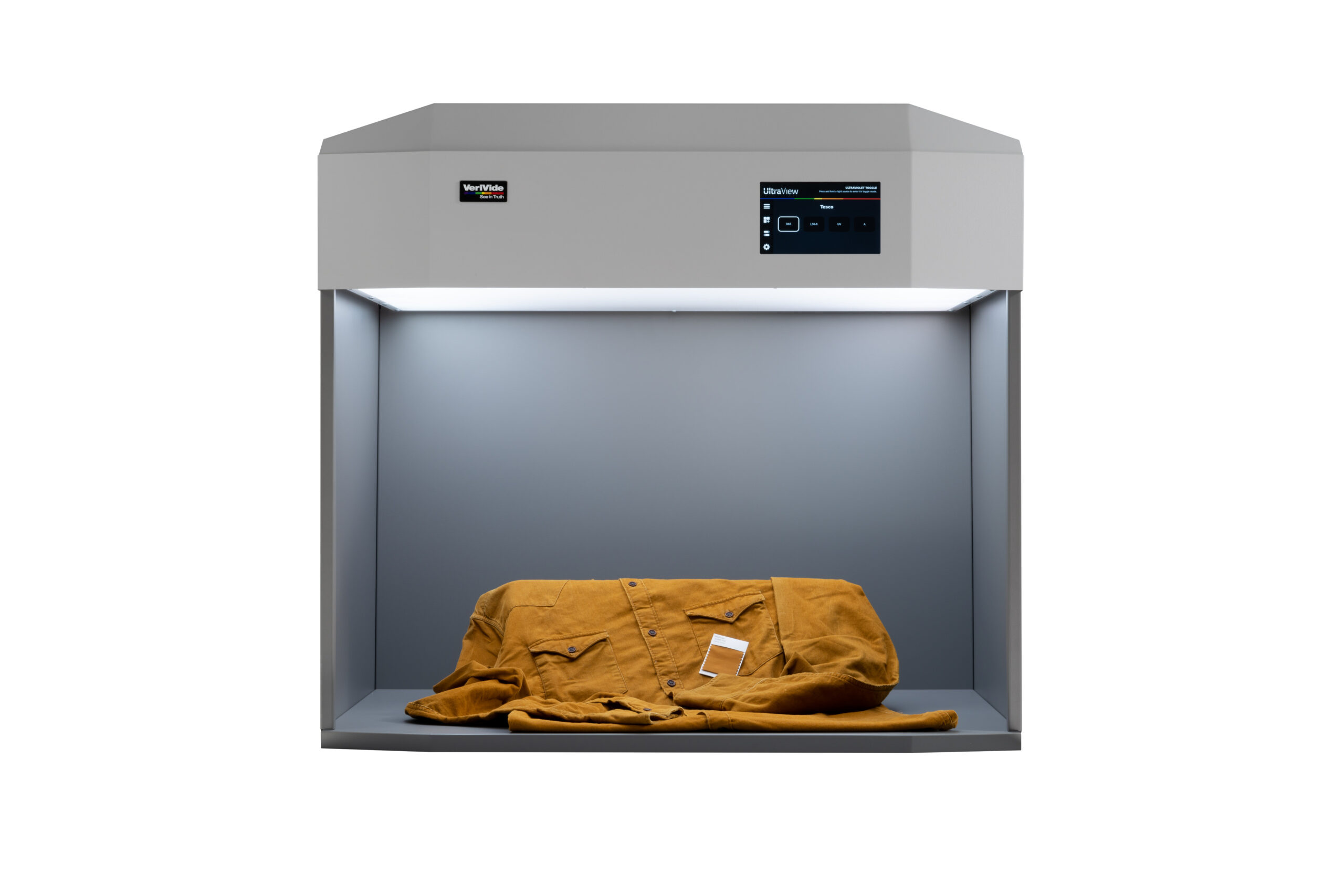

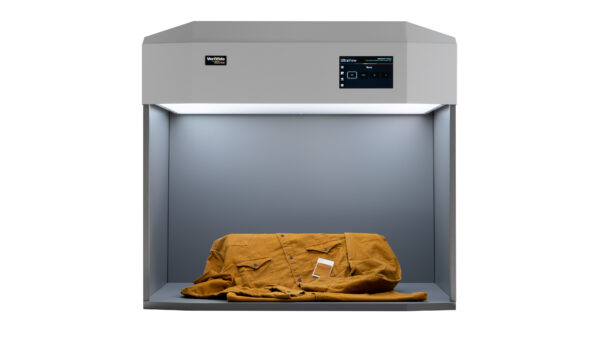

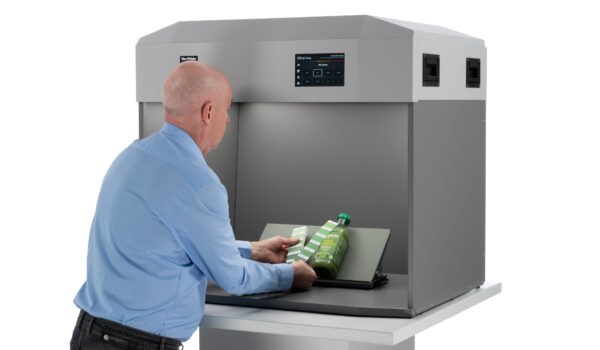

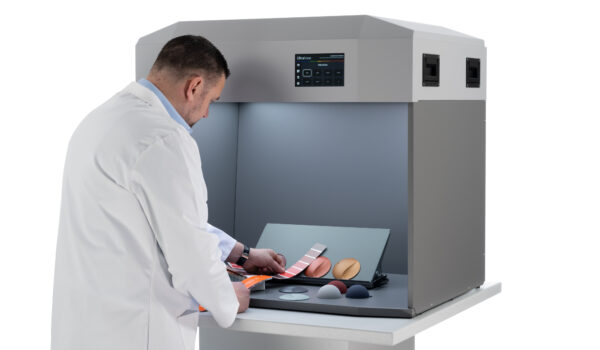

Colour matching under UltraView all-LED technology enables manufacturers and retailers to examine exactly how the products are going to look under LED Daylight and LED point of sale lighting.
Our LED technology works to tighter tolerances and does not suffer from the fringing effect or flickering, ensuring the operator’s ability to make reliable colour decisions.

UltraView Conforms to all major standards for visual evaluation; ASTM, AATCC, BSI, DIN, CIE, SAE and ISO including ISO 3668,3664 and 13076 allowing retailers and manufacturers to assess accurately the colour and appearance of their products.

Sustainability

  • Fluorescent lamps traditionally used in light booths needed to be replaced every 2000 hours or annually. However, with the UltraView  you no longer need to annually change components such as lamps. As UltraView is fully tunable you calibrate your light booth back to the original calibrated status annually.
  • Manufacturers and suppliers previously would have needed to have purchased multiple light booths to meet different brands and retailer specifications. For example, it’s not unusual for a garment manufacturer to have invested in multiple light booths to meet different brand/retailer requirements that they are working with. Now they only need to purchase the UltraView, and will have all of the different brand switch sets pre-programmed in. As new retailer specific light sources are introduced, these can be programmed in at the time of service and calibration.
  • More energy efficient using LED over Fluorescent or Halogen Technologies.

To understand more about VeriVide’s UltraView all LED light booth watch our informative video.

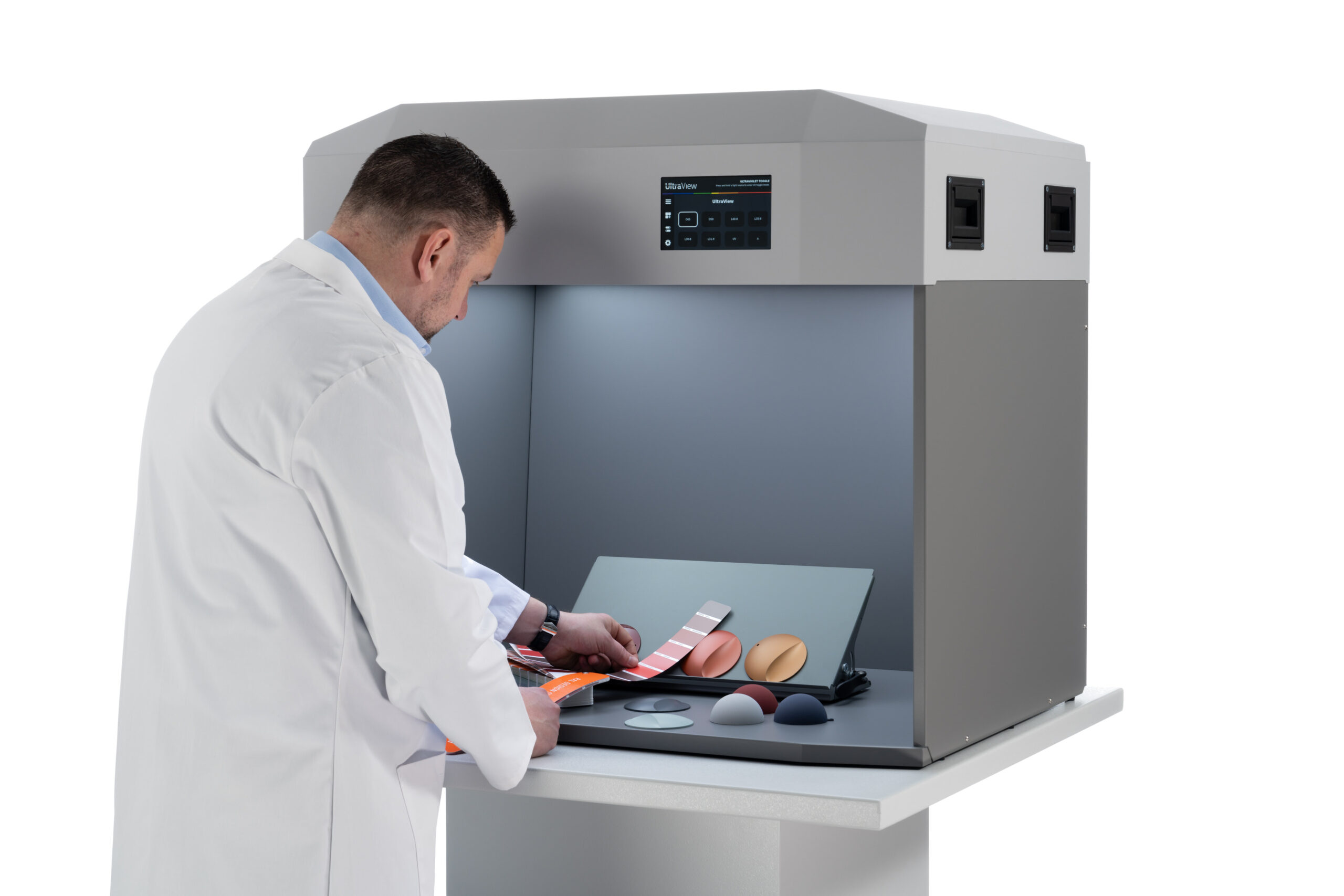

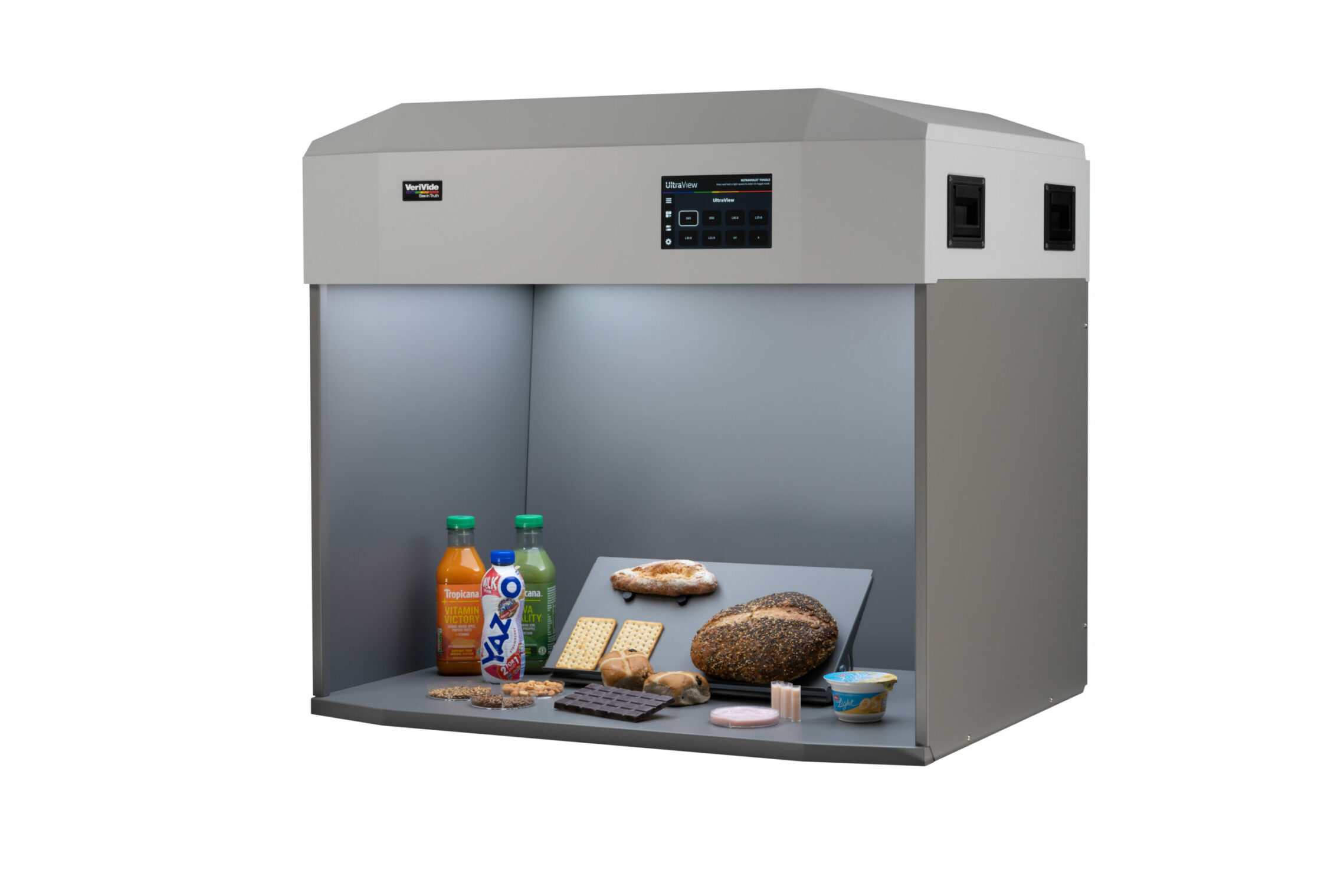

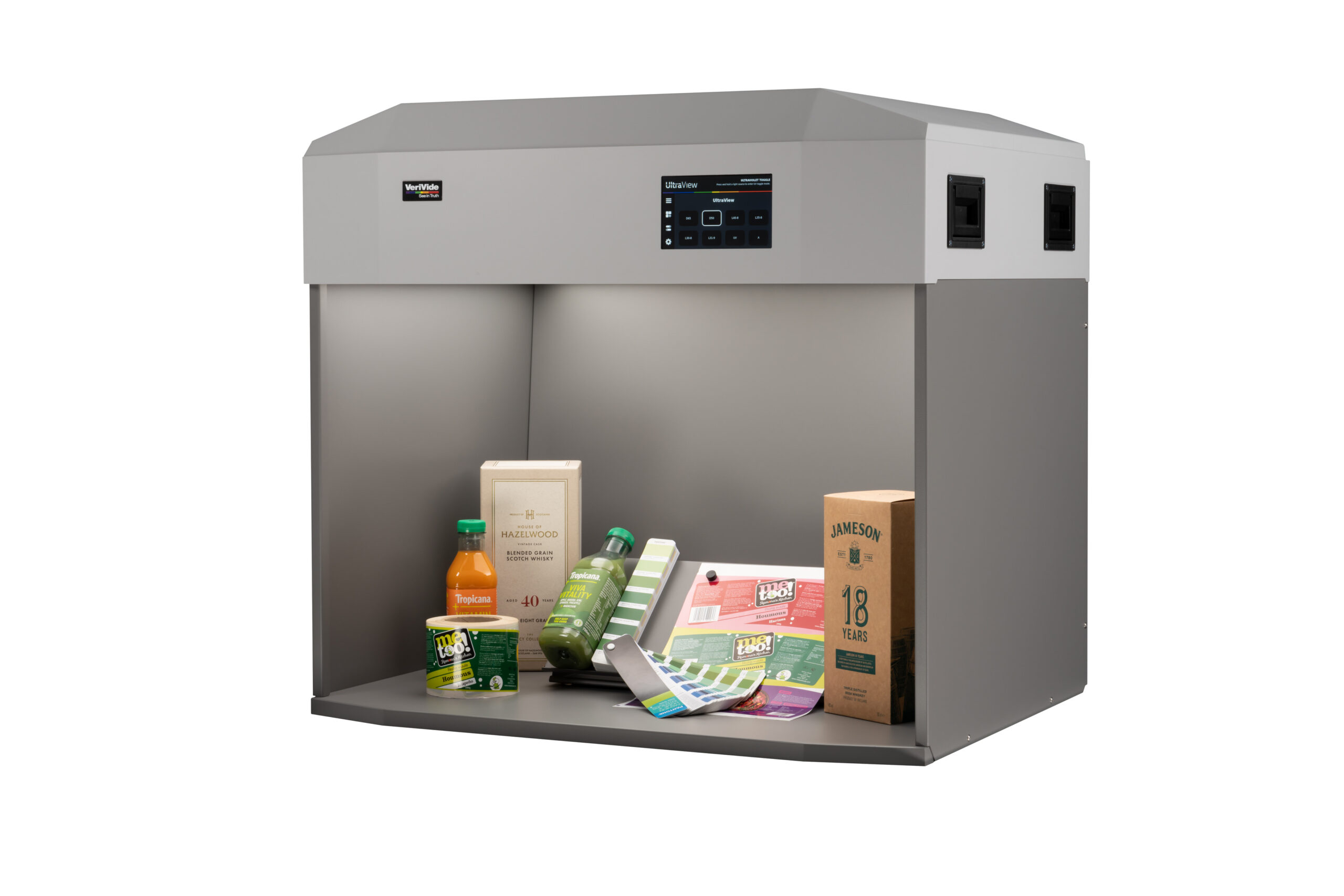

Our All-LED light booths are an essential tool for assessing colour from prototype materials to final products. Through industries including Textiles & Apparels, Plastics, Food & Drink, Inks, Paints & Coatings, Printing & Packaging, Automotive and Aerospace and many more.

Standard pre-programmed LED light sources in a UltraView light booth

Multi brand and Retailer light sources in one colour assessment light booth.

Suppliers to brands and retailers historically had to purchase multiple light cabinets to cover different retailer lighting needs. However, this is no longer the case, due to the developments in technology, suppliers can now purchase one UltraView and have all their different principle point of sale light sources pre-programmed.

The UltraView light booth for colour assessment has the ability to be programmed with multiple Brand and Retailer light sources with the ability to have up to 8 light sources per switch set.

The standard configuration comes with:

Our A rated CIE D65 and D50 Artificial Daylight illuminant
ISO 3664 D50-1 and D50-P2

CIE illuminant A
Horizon

Multiple POS LED options including L40-8 (4000K), L35-8 (3500K), L30-8 (3000K) and L31-9 (3100K)
VeriVide’s filtered ultraviolet LED technology.

UltraView Surpasses all major standards for visual evaluation, including ASTM, AATCC, BSI, DIN, SAE and ISO

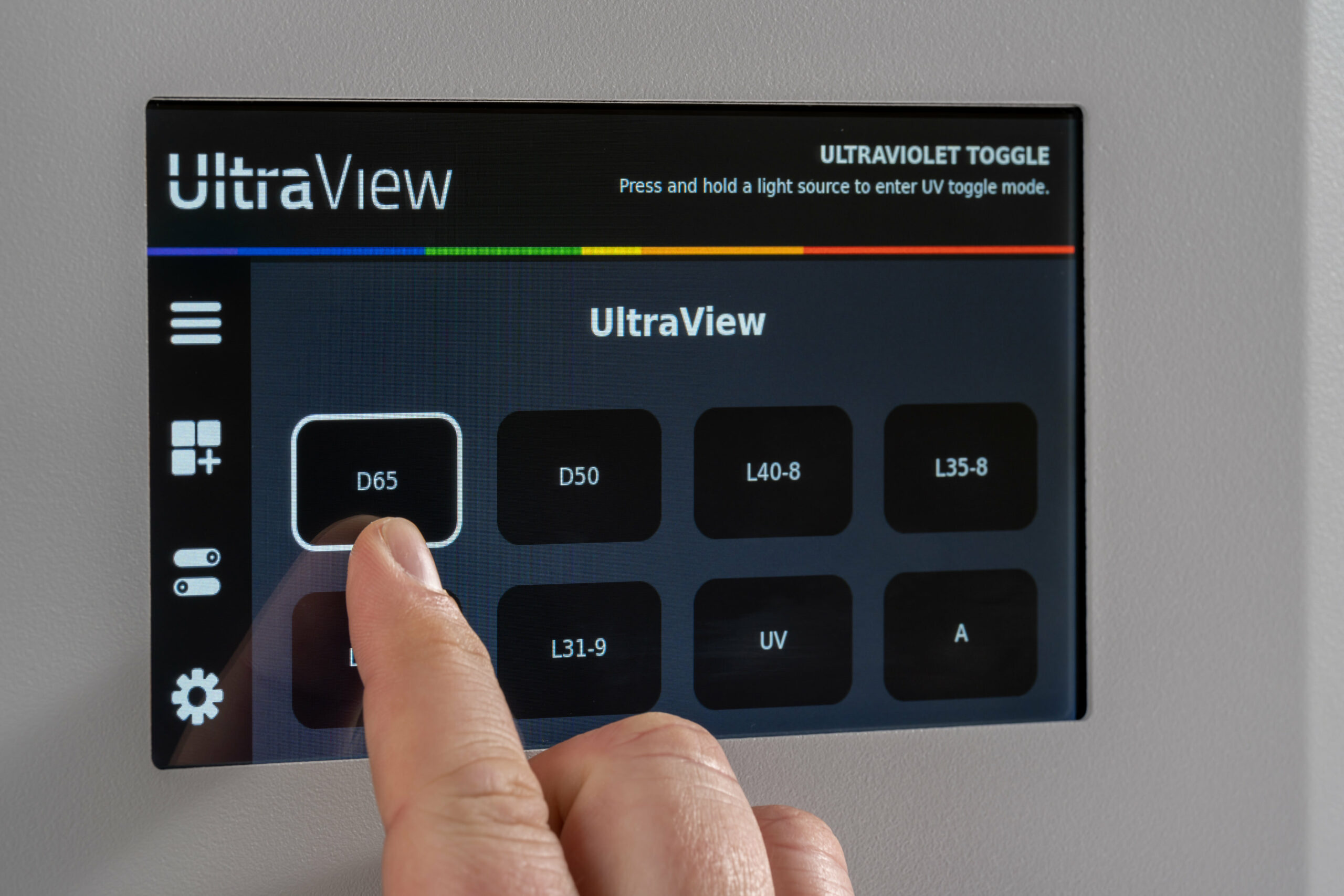

Filtered UltraViolet and UV Toggle Feature with in UltraView Light Booth

VeriVide’s filtered ultraviolet LED technology allows
precise assessment of OBA content and tint by eliminating unwanted visible light.

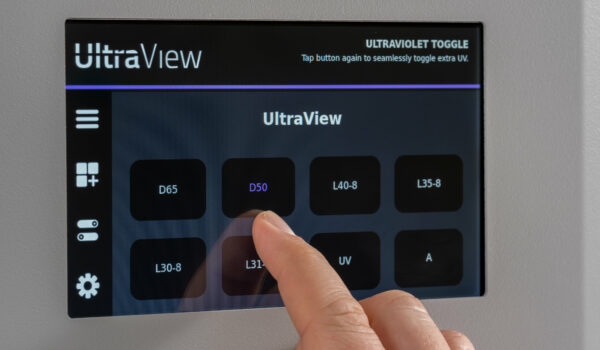

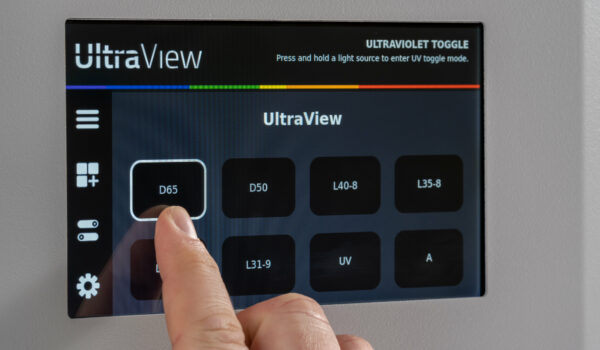

Also the UV toggle on all light sources to bring ultraviolet in
and out of the light source.

Features

  • All-LED tunable technologies
  • A rated CIE D65 and D50 illuminant
  • CIE illuminant A
  • Horizon
  • Multiple POS LED options available including pre-programmed as standard: L40-8 (4000K), L35-8 (3500K), L30-8 (3000K) and L31-9 (3100K)
  • VeriVide’s filtered ultraviolet LED technology allows precise assessment by eliminating unwanted visible light
  • UV toggle on all light sources to bring ultraviolet in and out of the light source

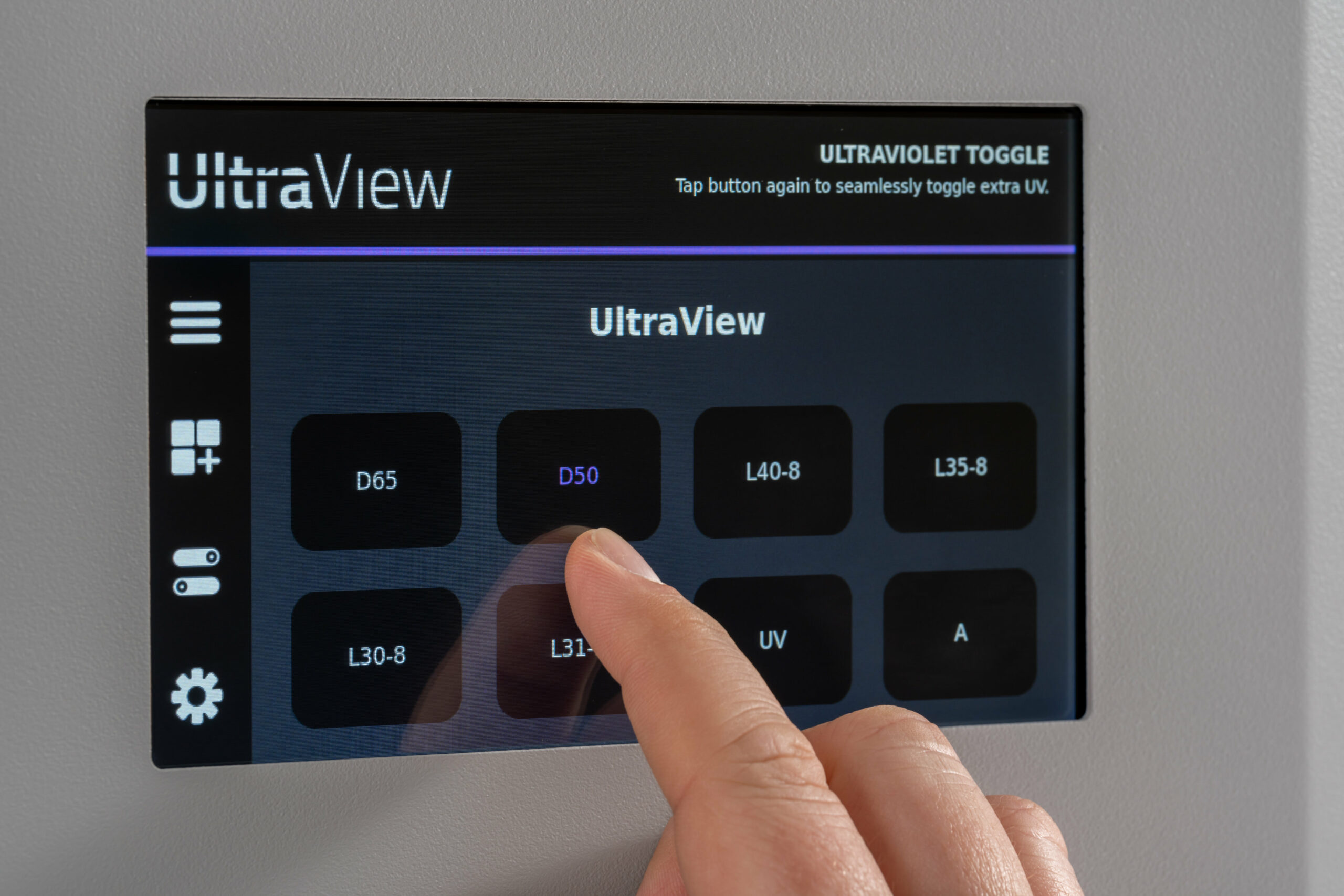

  • Touch screen interface with various features: calibration status, usage data logs, running temperature that offers unprecedented reporting and traceability
  • Multiple retailer LED switch sets pre-programmed
  • Up to 8 light sources per switch set
  • Standard internal finish is the Munsell N5. Munsell N7 can be supplied alternatively upon request

Benefits

  • Highest quality of colour matching and colour evaluation under LED that meets or surpasses ISO 3668, 3664 and national and international standards
  • Conforms to all major standards for visual evaluation; ASTM, AATCC, BSI, DIN and ISO
  • Specified by multiple brands and retailers globally
  • Detect new metamerism associated with LED lighting
  • Save time and wastage by communicating accurate colour decisions across your global supply chain
  • Fully Calibratable technology

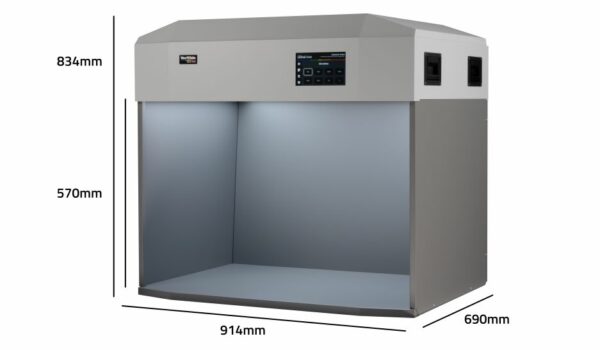

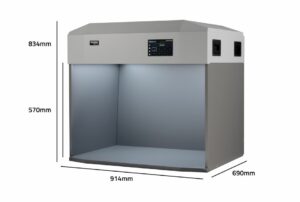

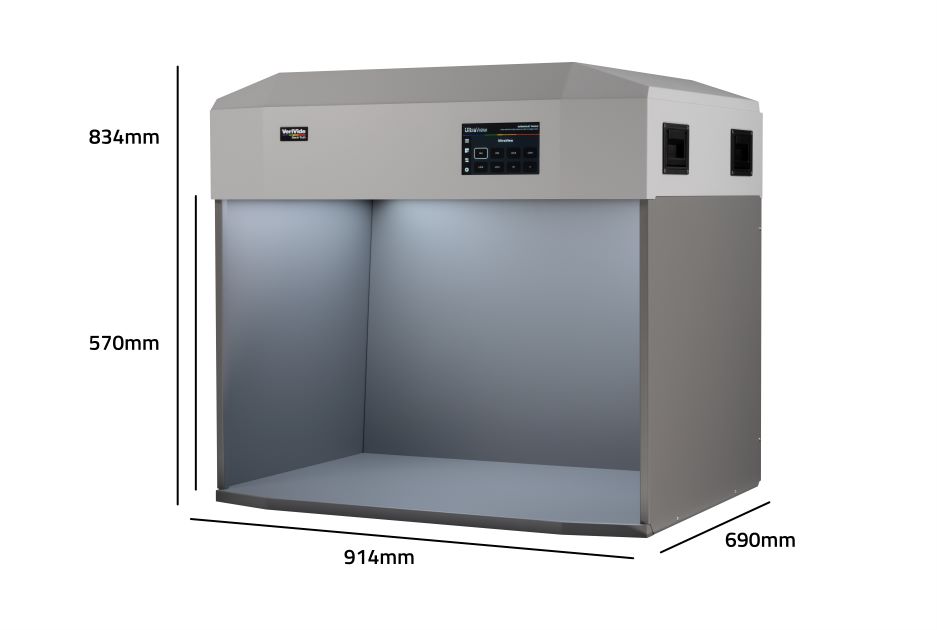

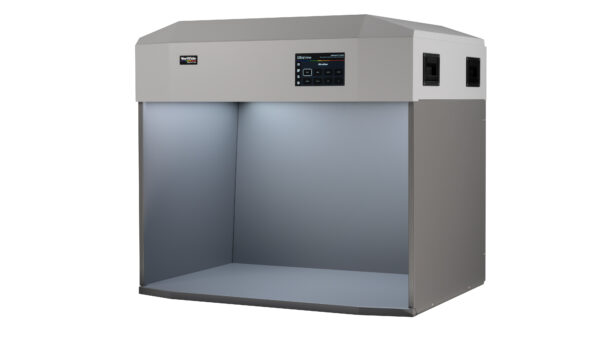

Dimensions

UltraView

Dimensions (mm) Width Height Depth
Overall 914 834 690
Viewing Area 866 570 -

Test Methods & Standards

  • AATCC EP9 :2021
  • ASTM D1729
  • BS 950-1
  • BS 950-2
  • CIE S 012/E
  • DIN 6173
  • ISO 13076:2019
  • ISO 23603:2005
  • ISO 3664:2009
  • ISO 3668:2017

Datasheets

UltraView Download
