Colour Control Cabinets (CCC)

(click to switch excl/incl VAT)

Increased user control, delivering consistent viewing conditions for colour assessments. Perfect for presenting to customers using a range of additional features, all whilst eliminating specular reflection.

Elimination of specular reflection with the neutral grey

Available in three sizes

Ensure agreeability and accurate colour communication

Packaging
Photography

Created in collaboration with PIRA for the graphic arts and print industry, Colour Control Cabinets (CCC) provide standardised viewing conditions for colour assessment of prints, proofs, ink weight, register, dot gain and photographic transparencies.
A single CIE standardised light source comes within the CCC, either VeriVide’s D65 with 6500K colour temperature or the D50 with 5000K colour temperature which is widely used in graphics, and printing industries.
VeriVide Colour Control Cabinets fulfil all the conditions of both BS 950: Part 1 and Part 2 standards, and ISO 3664: 2009 standards, enabling you to achieve colour consistency.
The unit is fitted with a digital control panel, giving the user increased control over the operation of the cabinet through additional features, including a backlit digital display, data storage and optional dimming.

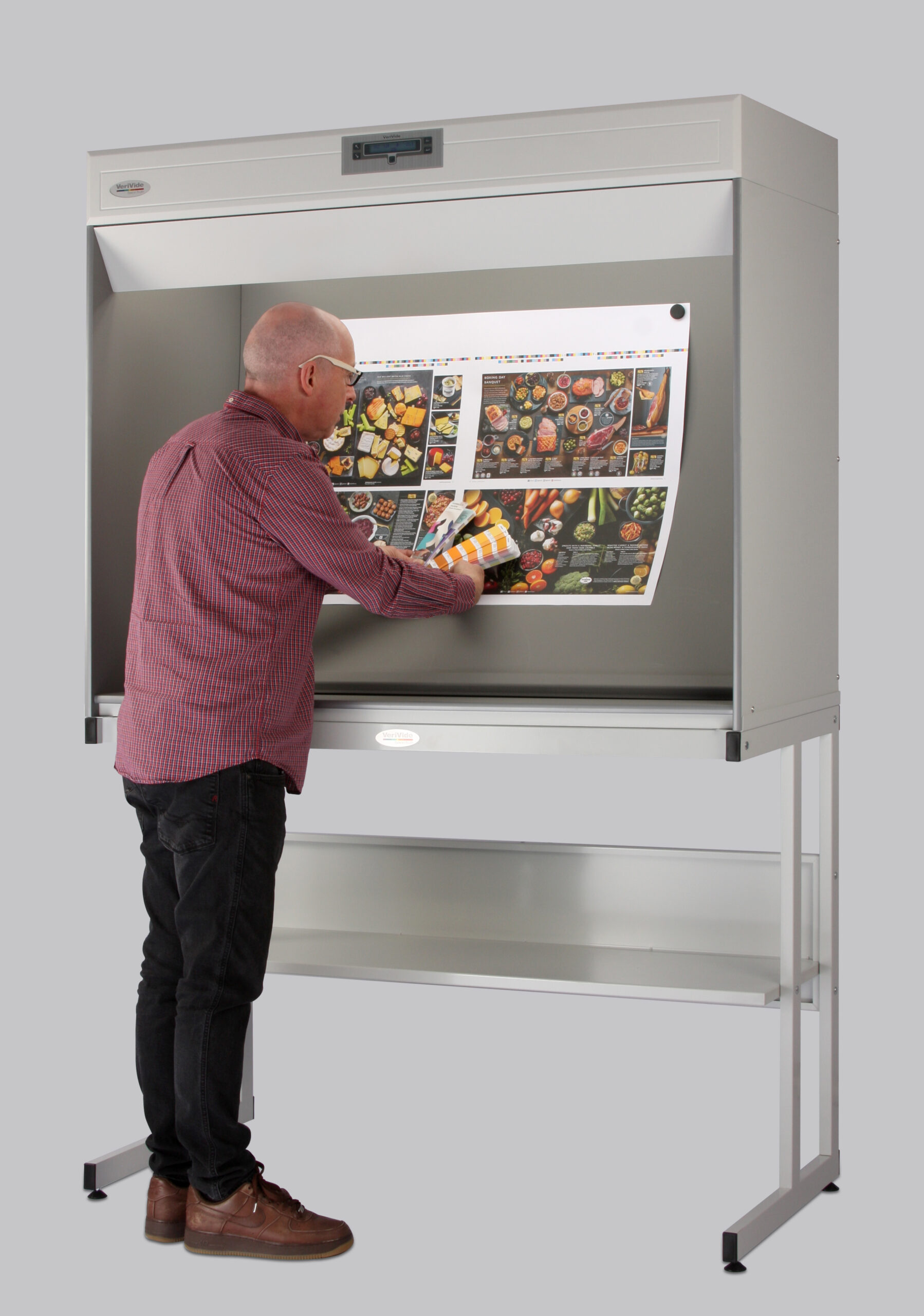

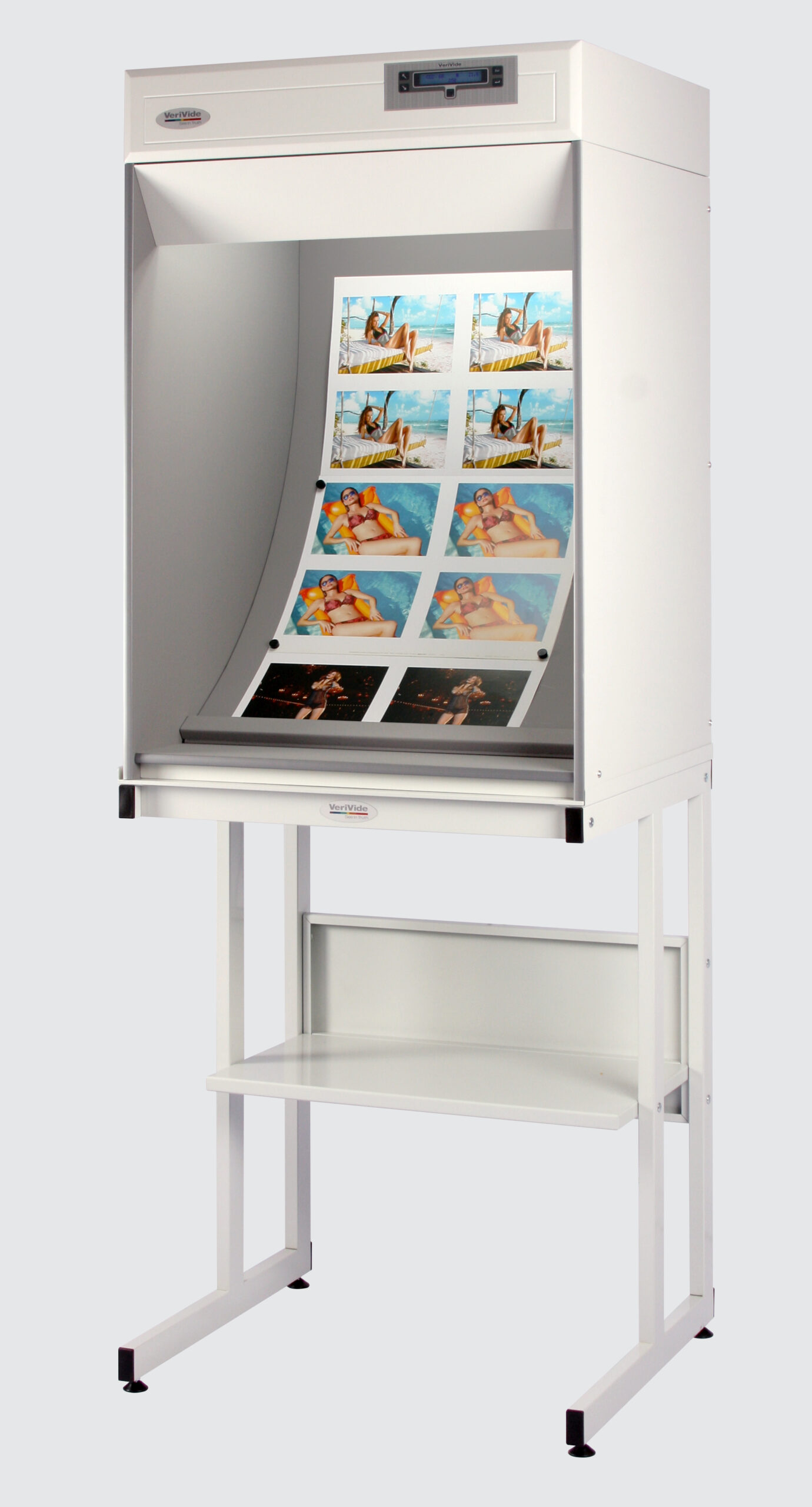

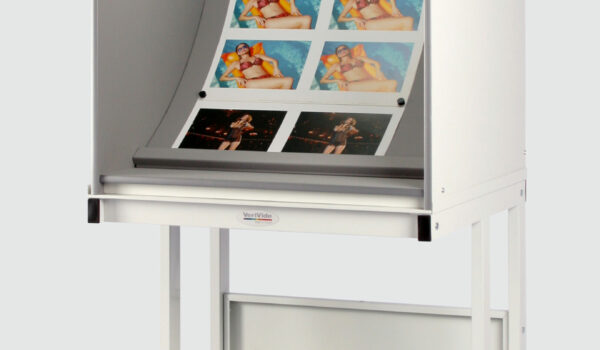

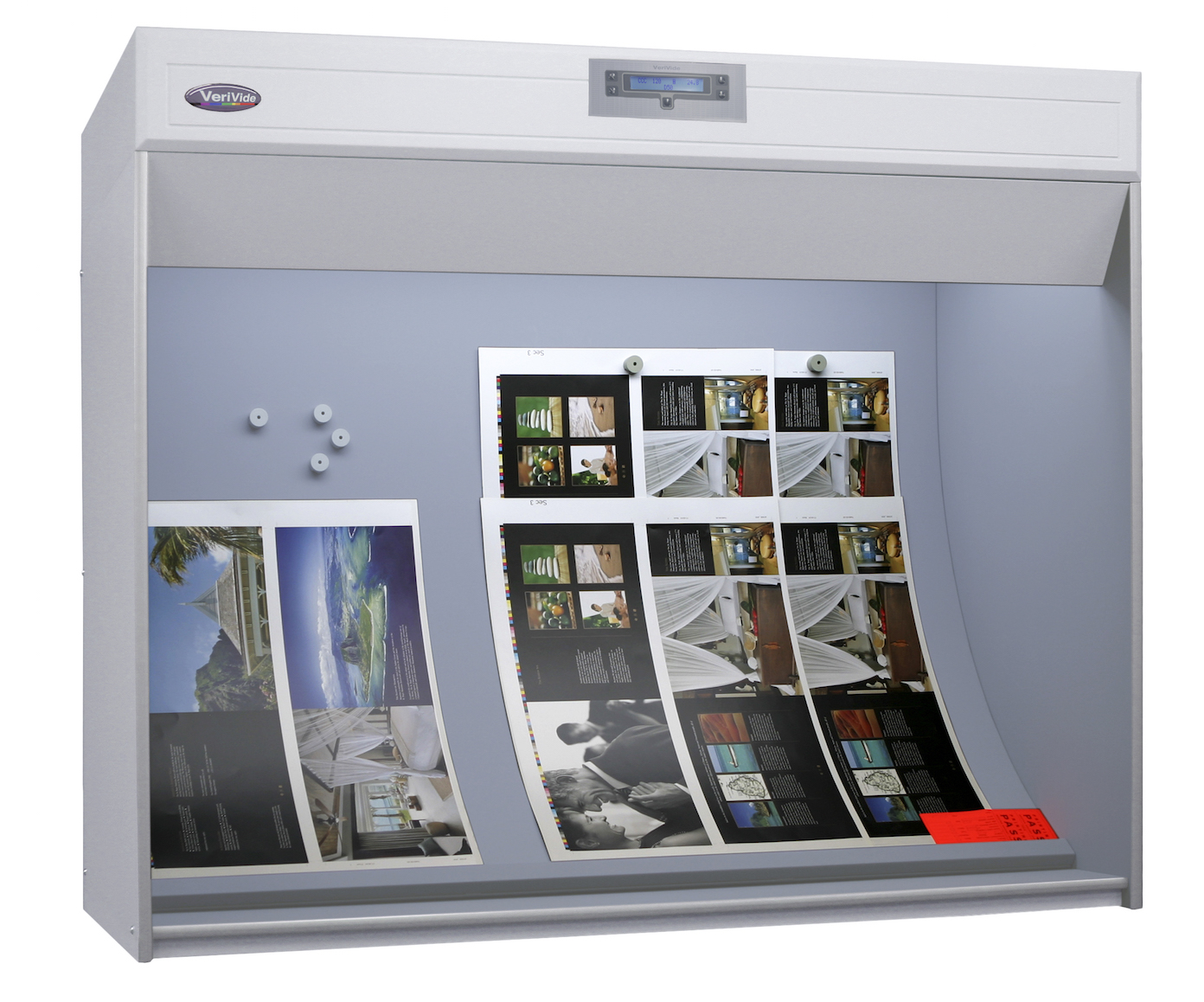

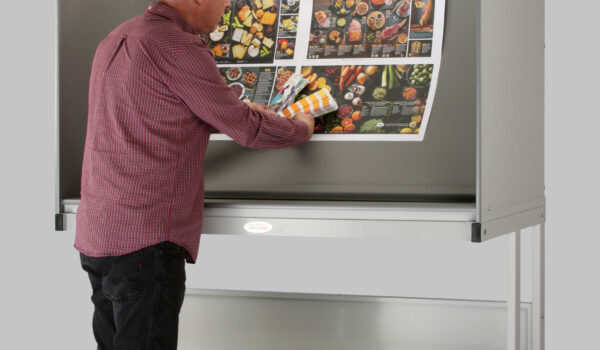

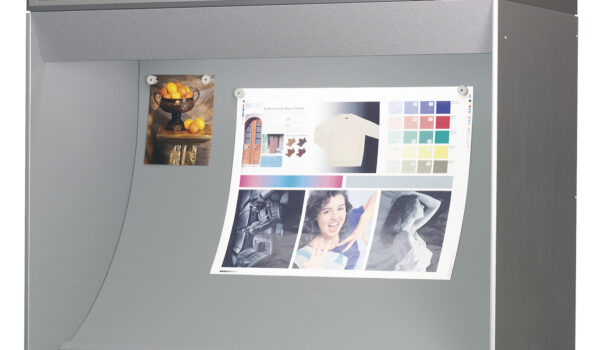

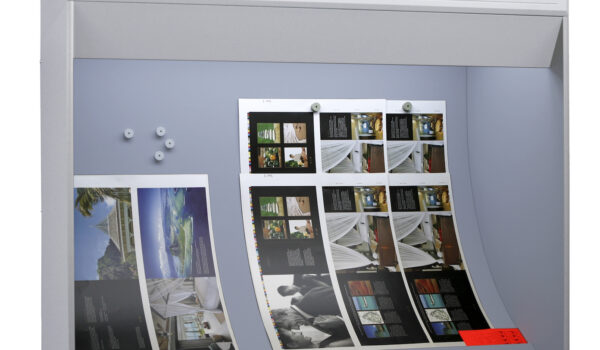

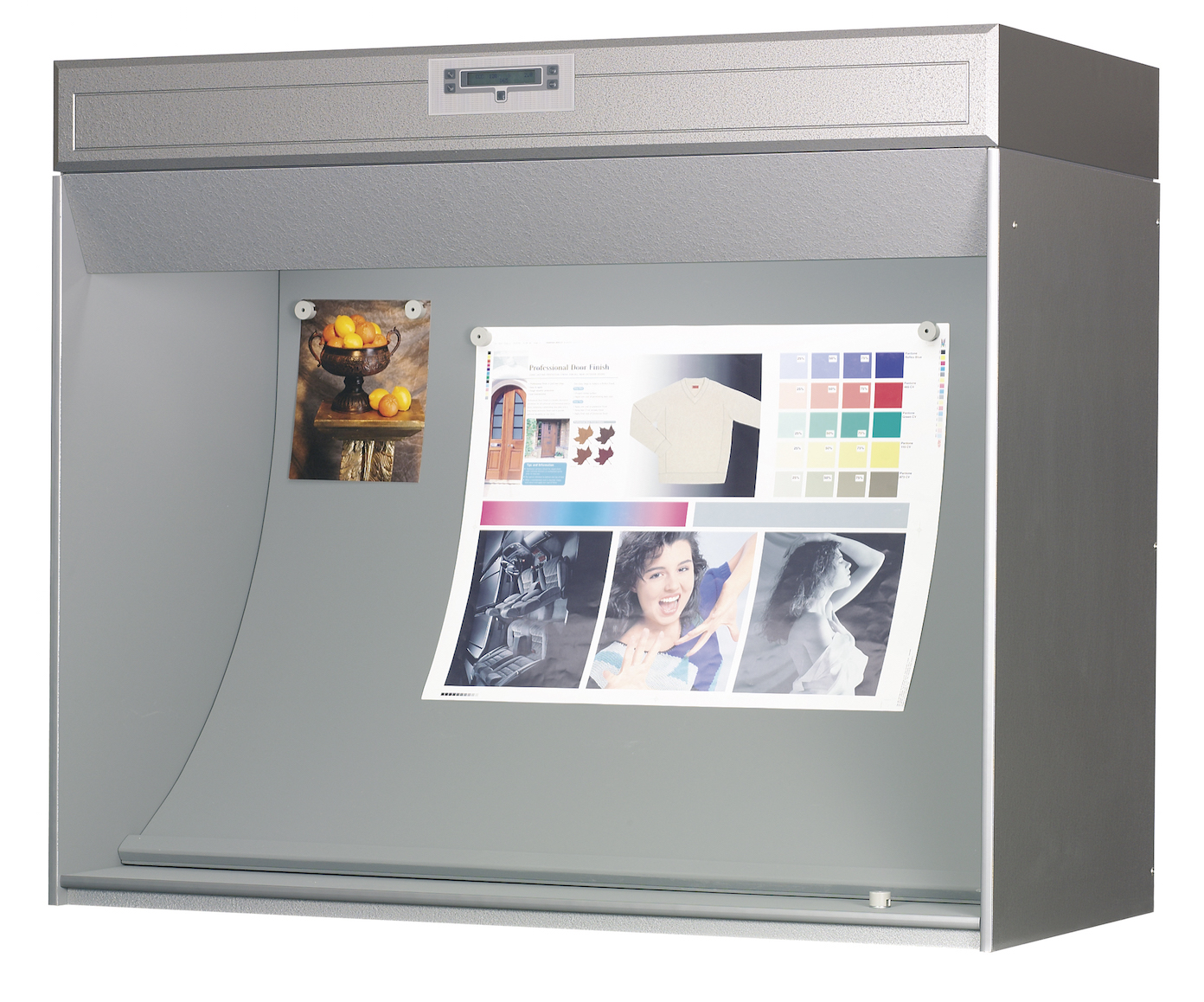

To eliminate specular reflection, the light booth has a neutral grey concave viewing deck, allowing accurate colour quality control. Prints and proofs can be held in position using the magnets provided, creating an ideal environment for presentations to customers.

Features

  • A high quality of CIE standardised illuminant is supplied, VeriVide’s D65 or D50 – please specify the light source. For specific requirements of additional light sources (e.g. 840P15) please contact us.
  • Dimmable option of CCC is offered for a variable intensity of light

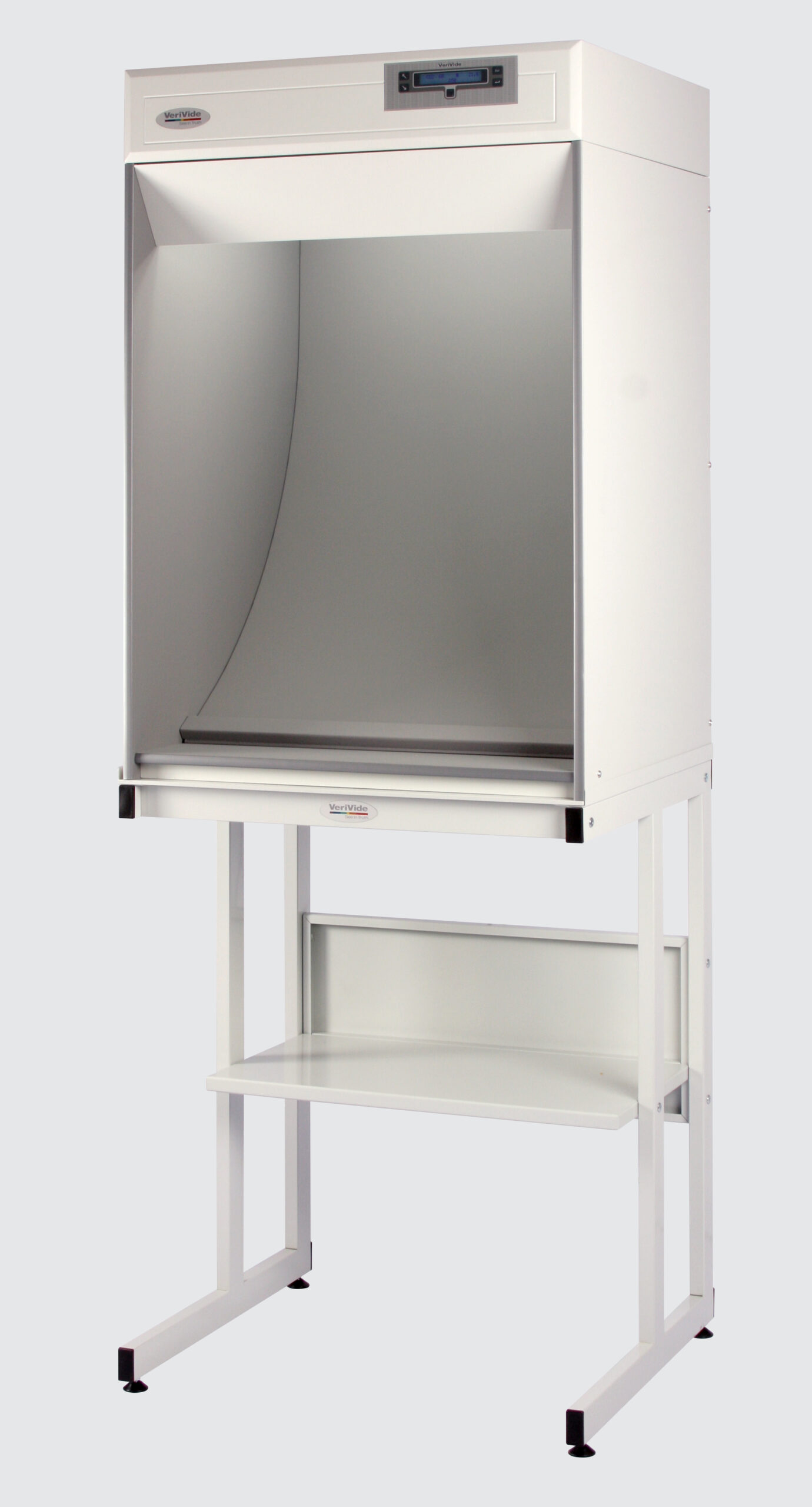

  • Available in three sizes: 600mm, 1200mm and 1500mm
  • Neutral matt grey interior which is normally Munsell N5 to comply with ISO 3664. Alternatively, Munsell N7 and VeriVide’s Grey G5574 is available.
  • Specify the voltage you require to suit the cabinet’s location

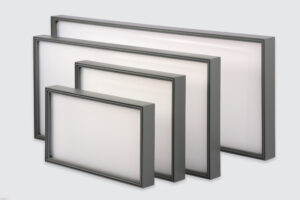

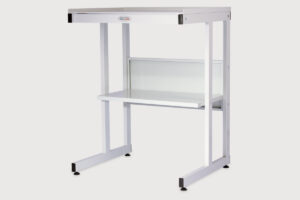

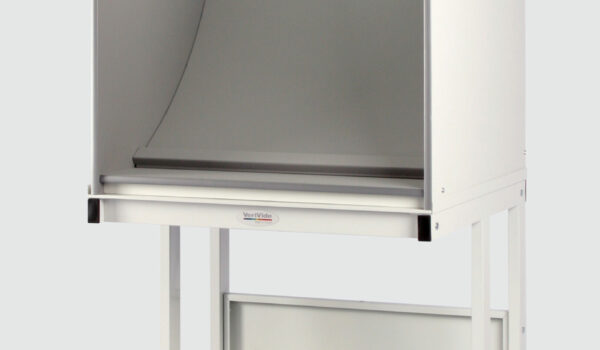

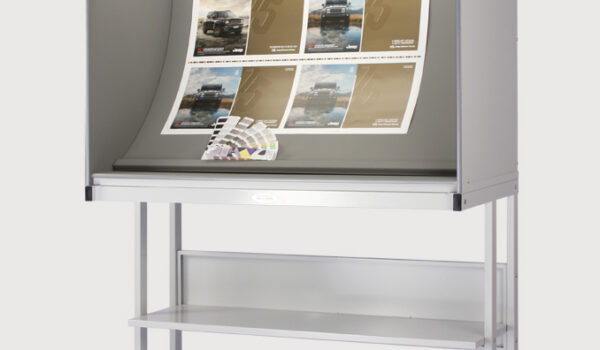

  • Diffuser and other accessories such as bench and cupboards are also available

Benefits

  • Consistent and standardised viewing booth to ensure agreeability and accurate colour communication through the supply chain
  • Viewing area is suitable for small or large applications for print checking, as the light cabinet is available in three sizes.
  • Elimination of specular reflection with the neutral grey concave viewing deck which comes with the Colour Control Cabinet

Dimensions

CCC 60

Dimensions (mm) Width Height Depth
Overall 710 1085 620
Viewing Area 680 985 -

CCC 120

Dimensions (mm) Width Height Depth
Overall 1290 1085 620
Viewing Area 1260 985 -

CCC 150

Dimensions (mm) Width Height Depth
Overall 1560 1085 620
Viewing Area 1530 985 -

Test Methods & Standards

  • ISO3664:2009

Datasheets

CCC Download

Extra Specification

  • Standards: BS 950: Part 1 & Part 2, and ISO 3664: 2009
  • Colour temperature: 5000K
  • Light intensity: 1500lx – 2500lx
  • Chromaticity coordinates with CIE D50 Tolerance 0.015
  • Colour Rendering Index: >/= 90
  • Metamerism Indices: MI Visible Range < 1.0 and MI UV < 1.5
  • Interior Colour options: Grey Munsell N5, Grey Munsell N7, VeriVide’s Grey 5574.
