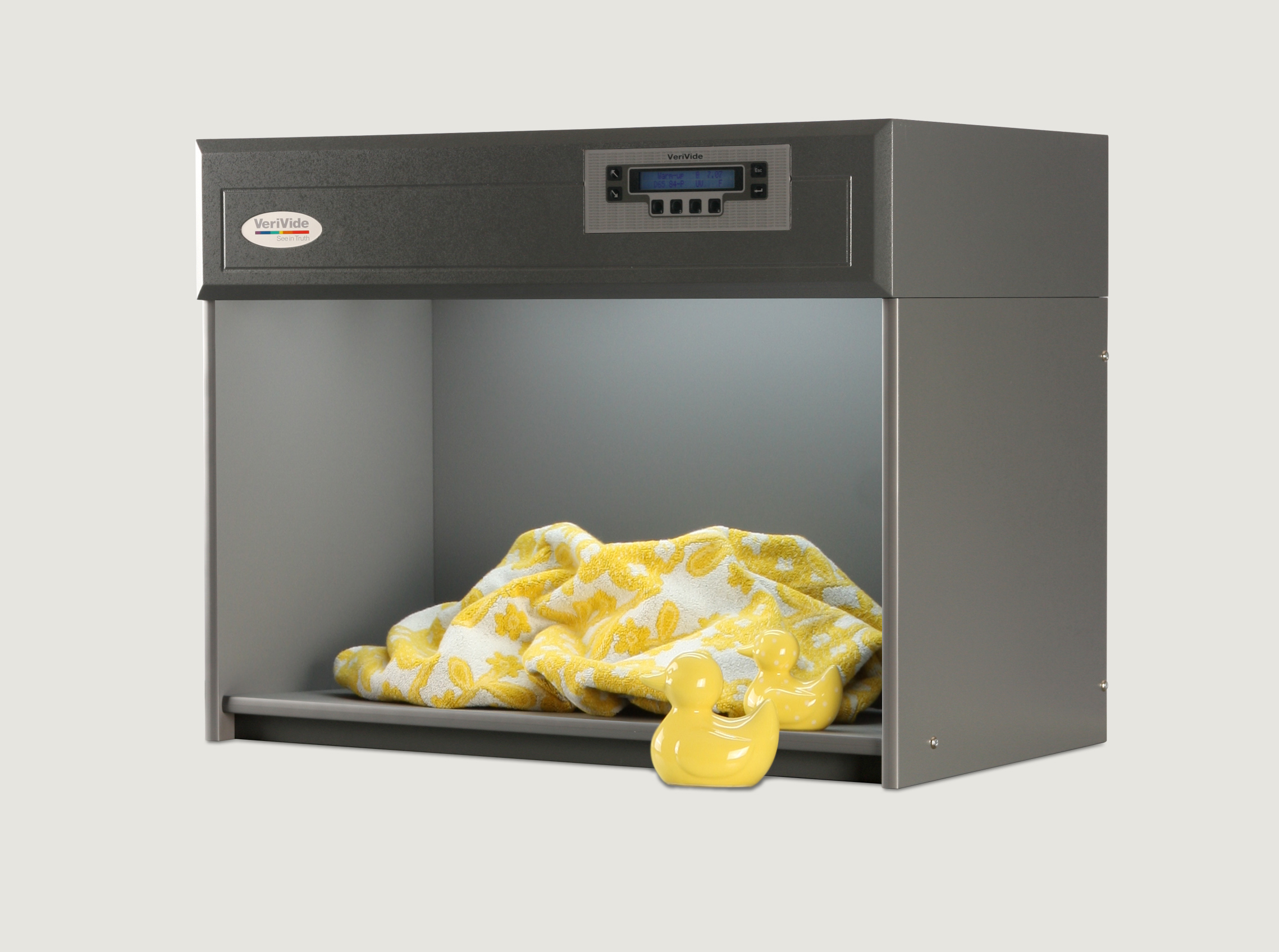

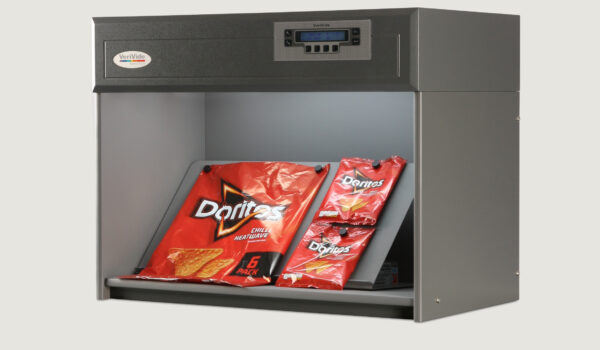

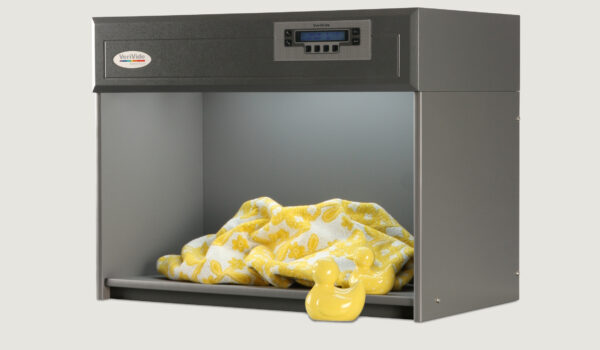

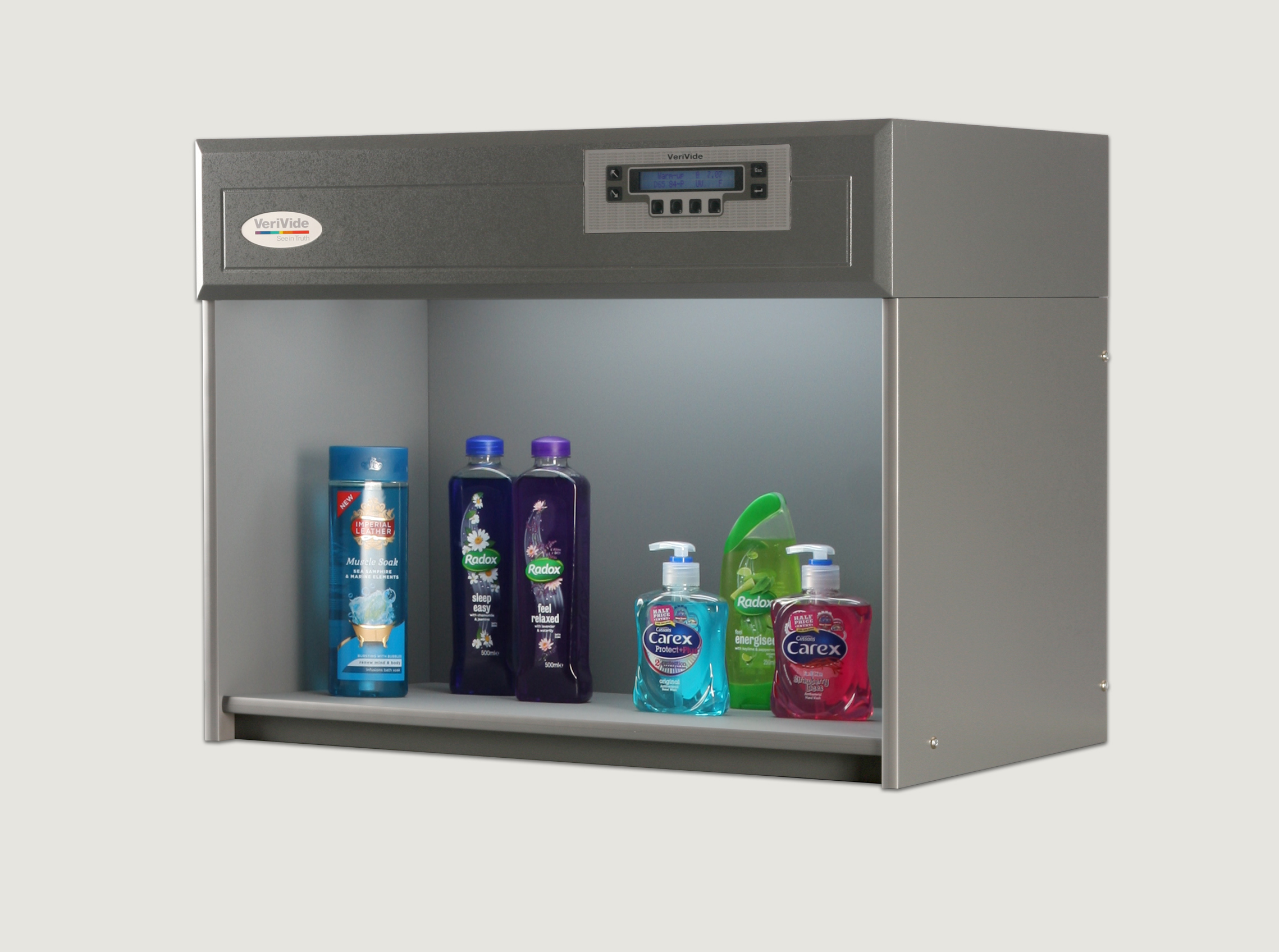

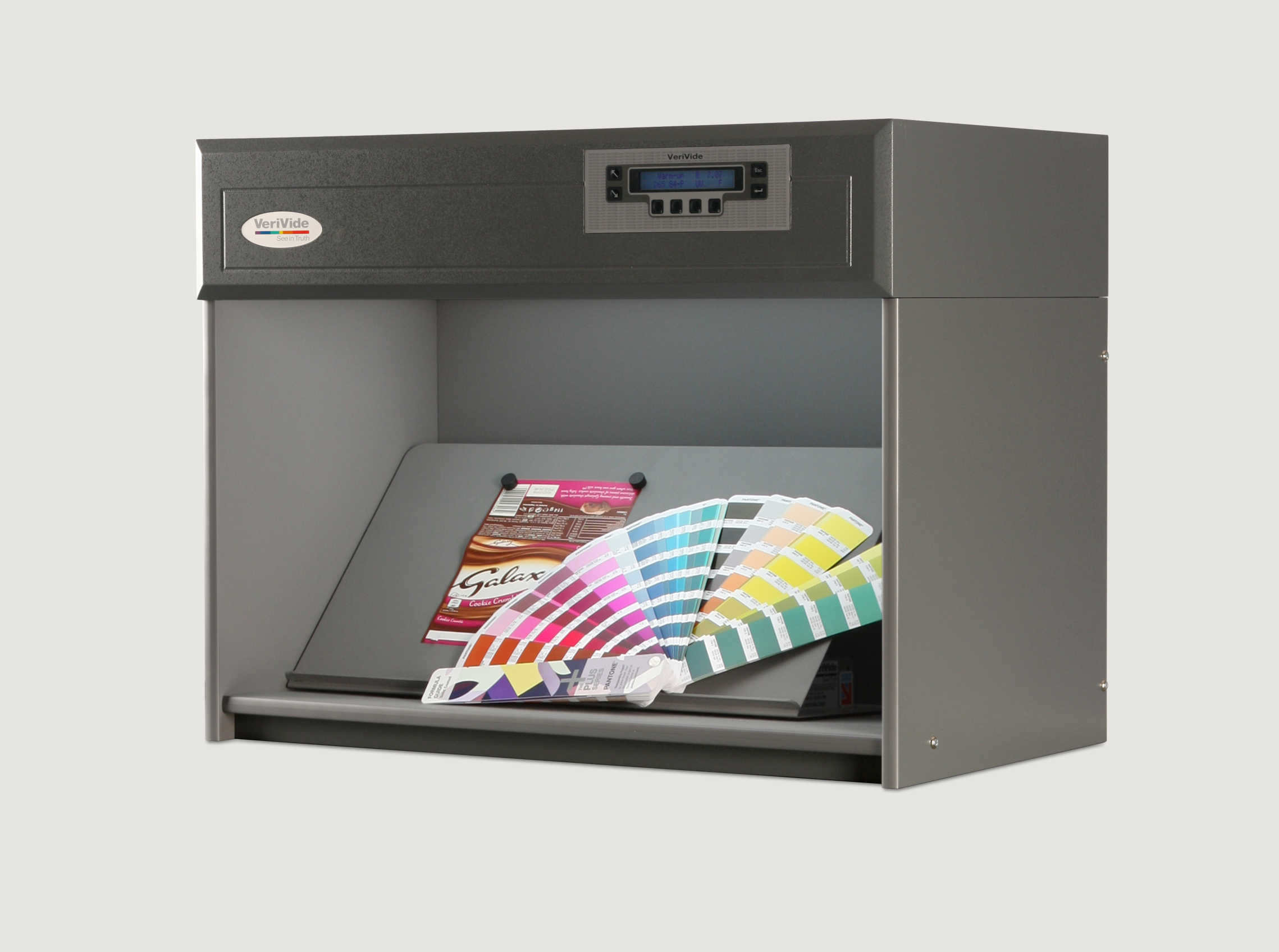

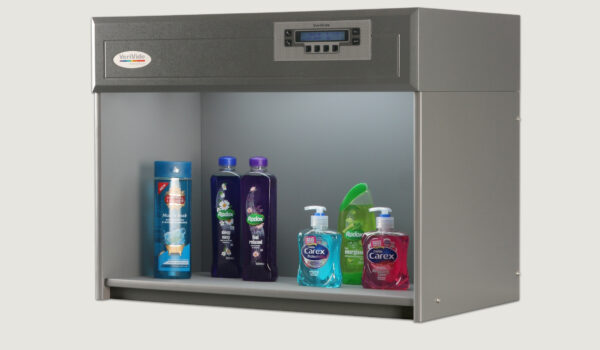

Colour Assessment Cabinets

(click to switch excl/incl VAT)

High-quality visual evaluation tool for quality assurance. Adhering to national, international and retailer standards.

Colour Assessment Cabinet’s (CACs) reduce challenges associated with assessing products or samples in different environments, be though geological or seasonal, offering a cost-effective method to ensure visual accuracy and product quality.

Download Download Brochure

Comes in 3 widths: 60, 120 and 150cm

Meet or surpass ISO 3664 and BS 950 Part 1 international standards

4 or 5 light source options

Aerospace
Apparels
Automotive
Building Materials
Cosmetics & Personal Care
Food & Drink
Graphics Prints & Inks
Homeware
Medical & Pharmaceutical
Packaging
Paints & Coatings
Photography
Plastics
Technical Textiles

Suitable for a wide range of industries and applications

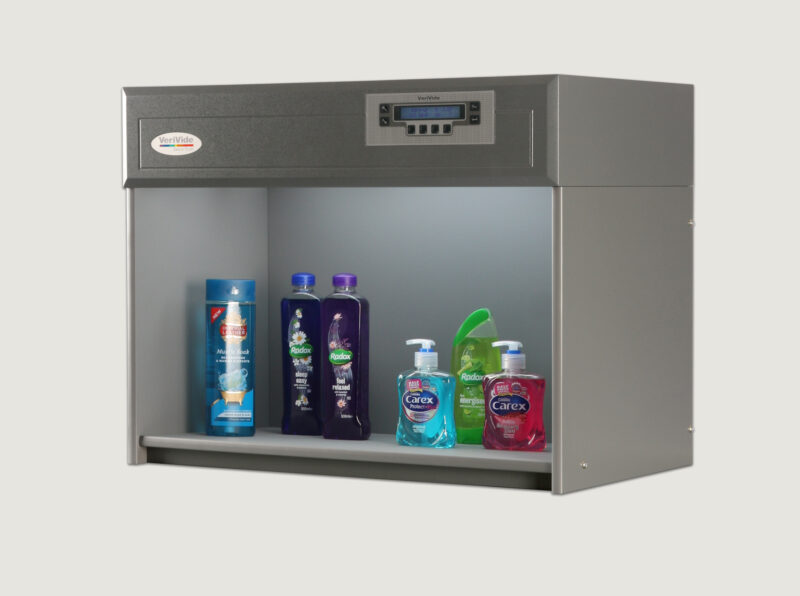

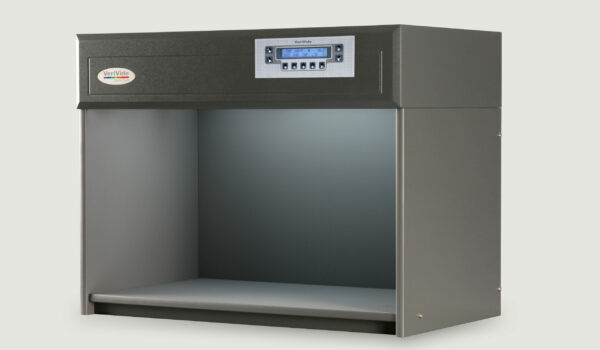

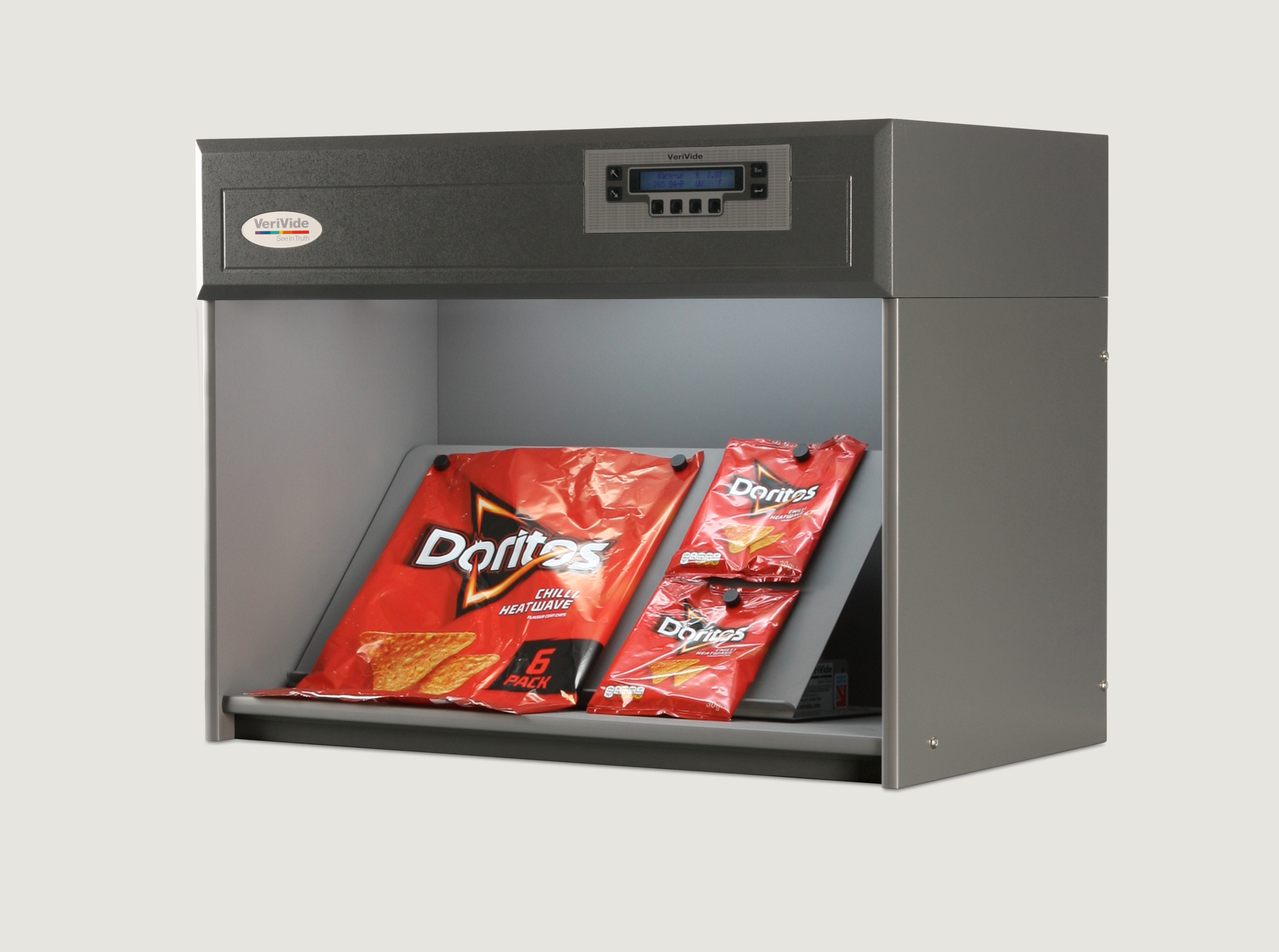

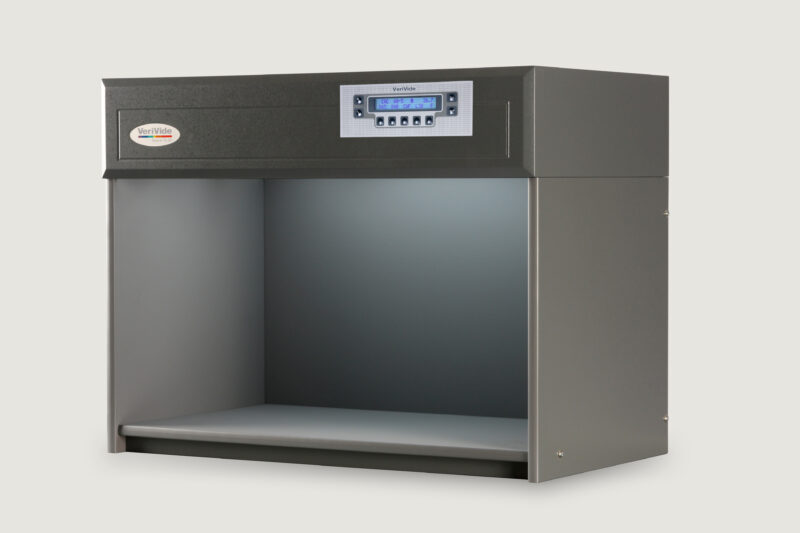

VeriVide’s Colour Assessment Cabinets provide consistent and standardised viewing environments to evaluate colour variations, detect metamerism and communicate colour accurately across the supply chain.

Colour Assessment Cabinets reduce problems associated with assessing products or samples in different environments, be though geological or seasonal, offering a cost-effective method to ensure colour consistency and product quality.

As a high-quality viewing booth for colour matching and quality control, VeriVide CAC meets or surpasses ISO 3664 and BS 950 Part 1 international standards, enabling designers, manufacturers, and retailers to examine visually their products under up to 5 different fluorescent illuminates (D65, D50, 840 P15, F Tungsten, UV) and communicate colour with accuracy. Our fluorescent D65 daylight simulator provides the highest Colour Rendering Index (CRI) available.

Regular servicing is highly recommended to ensure that your light cabinet remains as accurate as the day of purchase.

Flexible & Adaptable

VeriVide CACs are flexible and adaptable to user requirements. See Lamp options to chose your light sources.

User-friendly

Incorporate user-friendly features like servicing indicator, auto sequence, warm-up, power save and data storage.

Colour Fastness Testing & Particulate Testing

Versions available for colour fastness testing and particulate testing both adhering to global standards.

Fluorescent D65 Daylight Simulator

Ensure that you are using the best equipment available as they provide the best fluorescent D65 daylight simulator, with the highest Colour Rendering Index (CRI), available.

Features

  • CACs come in 3 widths of light boxes: 60, 120 and 150cm.
  • Convenient and easy electronic control panel that incorporates user-friendly features like servicing indicator for lamp replacement, auto sequence, warm-up, power save and data storage.
  • 4 or 5 light sources available for each model which conform to ISO/ CIE standards, including D65, D50, 840P15, F and UV. Check the Lamp options.
  • Dimmable option of CAC is available to adjust the brightness if you require a variable intensity of light.
  • Internal finishes are paint in Munsell N5, Munsell N7 or Grey 5574.

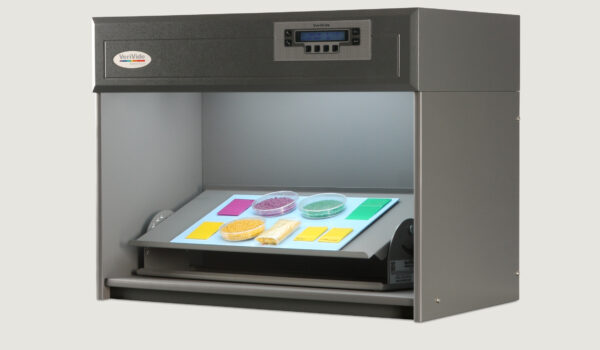

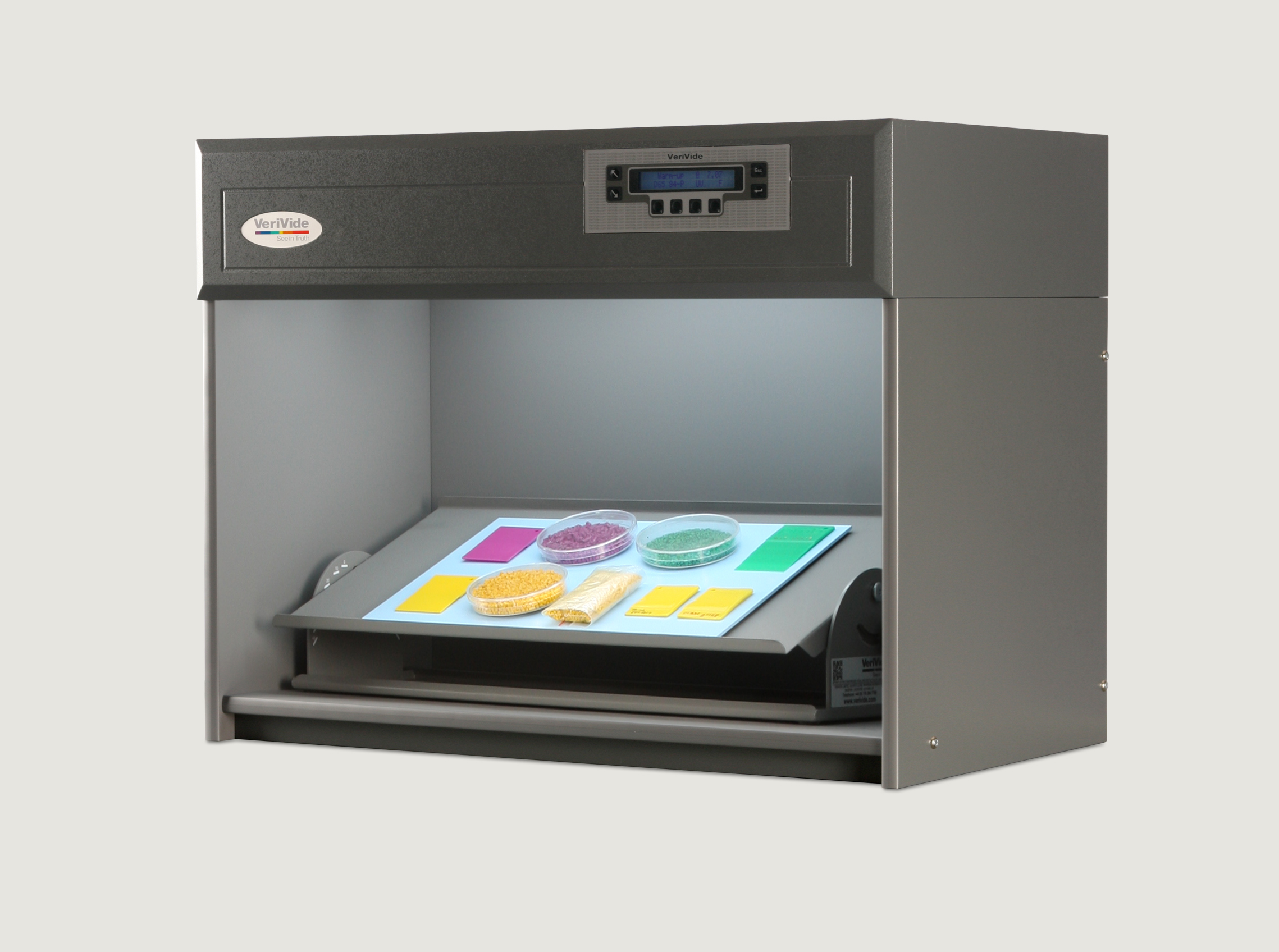

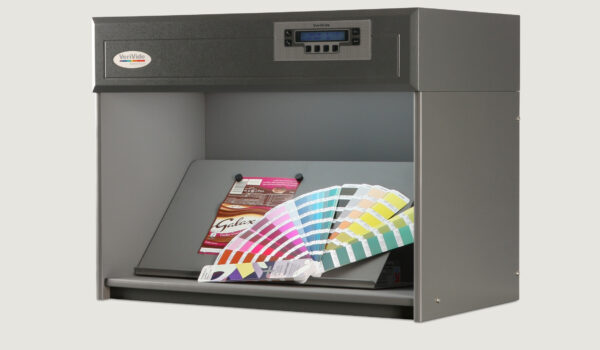

  • Diffuser and/or angle tables are available to assess accurately colour of paints, glass, polished surfaces and ceramics.

Benefits

  • Highest quality of viewing lighting conditions that meets or surpasses ISO 3664 and BS 950 Part 1 national and international standards.
  • Accurate colour matching, visual quality control and colour communication across your global supply chain to achieve colour consistency
  • Flexible and adaptable to user requirements. See Lamp options to choose your light sources.
  • 3 different sizes to assess from small to large products or samples.
  • Versions available for colour fastness testing and particulate testing both adhering to global standards

Dimensions

CAC 60-4

Dimensions (mm) Width Height Depth
Overall 710 545 420
Viewing Area 680 360 380

CAC 60-5

Dimensions (mm) Width Height Depth
Overall 710 545 540
Viewing Area 680 360 495

CAC 120-4 and CAC 120-5

Dimensions (mm) Width Height Depth
Overall 1290 755 620
Viewing Area 1260 570 585

CAC 150-4 and CAC 150-5

Dimensions (mm) Width Height Depth
Overall 1560 755 620
Viewing Area 1530 570 585

Test Methods & Standards

  • ISO3664:2009

Datasheets

Colour Assessment Cabinet Download
Textile Testing Range Download
