Colour Fastness Cabinet (CF 60)

Exceptional viewing conditions for assessing and manual grading of colour fastness samples, providing consistency and conforming to set retailer specifications.

Meets or surpasses BS EN ISO 105 and retailer specifications.

Easy and quick detection of fluorescent dyes and bleaches

Supplied with magnets

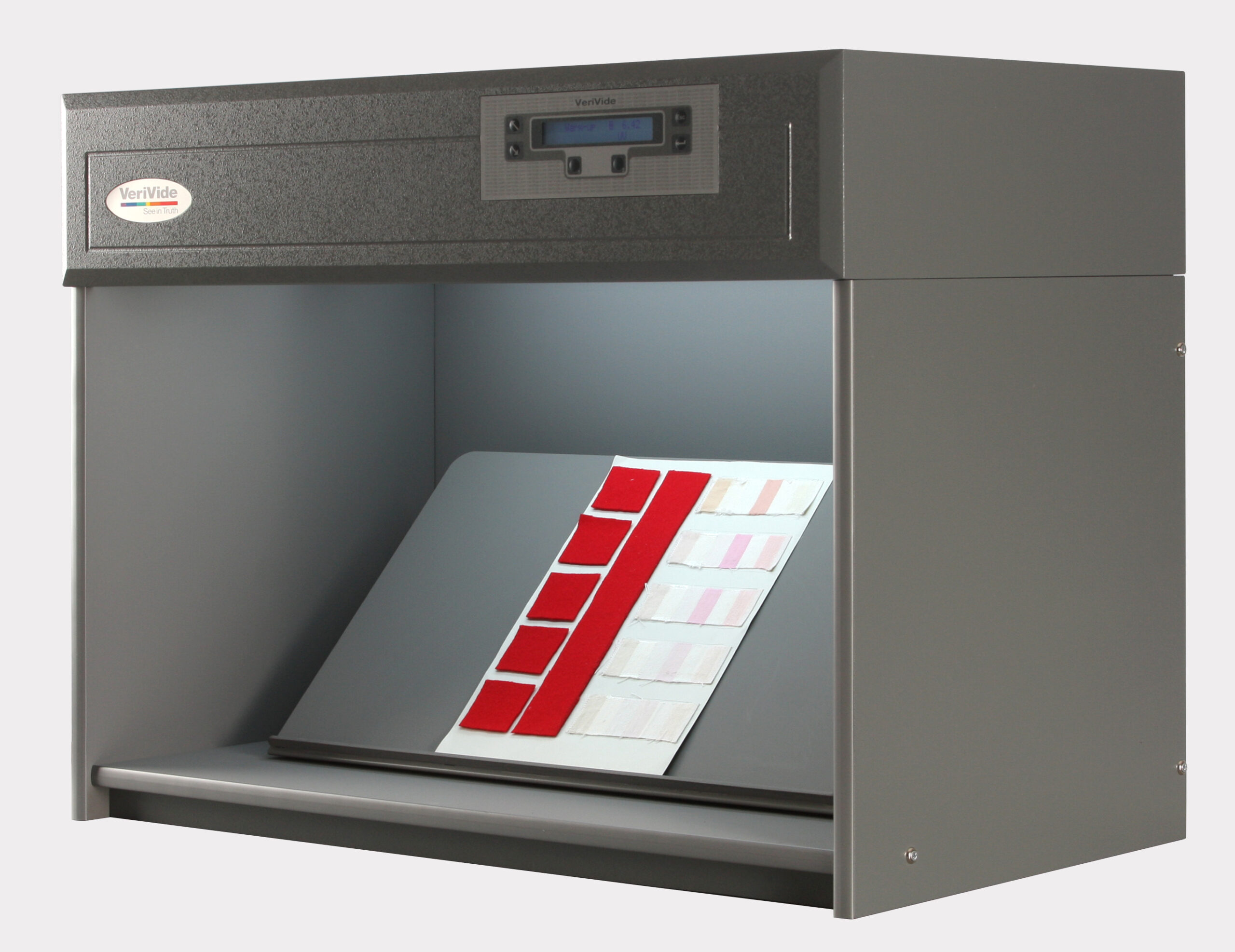

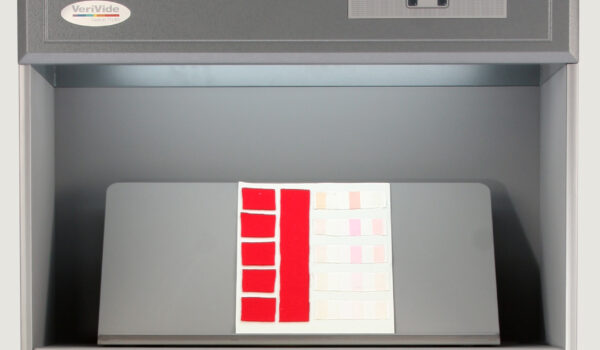

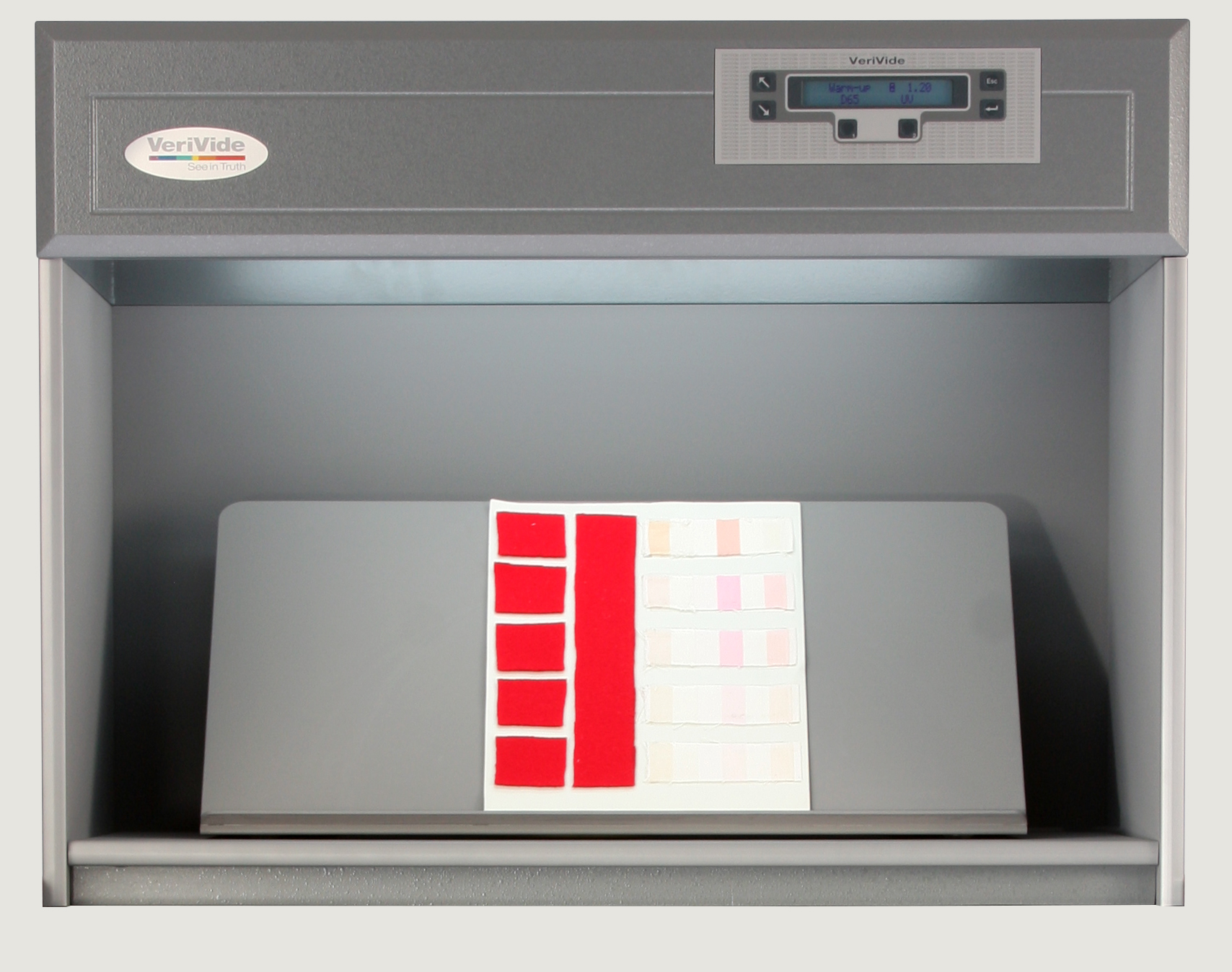

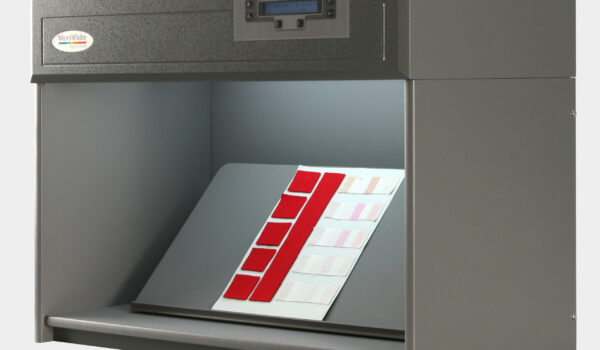

VeriVide’s Colour Fastness Grading Cabinet (CF 60) provides exceptional viewing conditions for assessing and manual grading of colour fastness samples, conforming to BS EN ISO 105 and retailer specifications.
Two light sources are fitted to our Colour Fastness Cabinet 60:
• VeriVide’s artificial daylight D65 at 6500 Kelvin, providing the highest quality of D65 illuminate according to the ISO/ CIE standards
• UV Black Light to reveal the presence of fluorescent dyes and bleaches

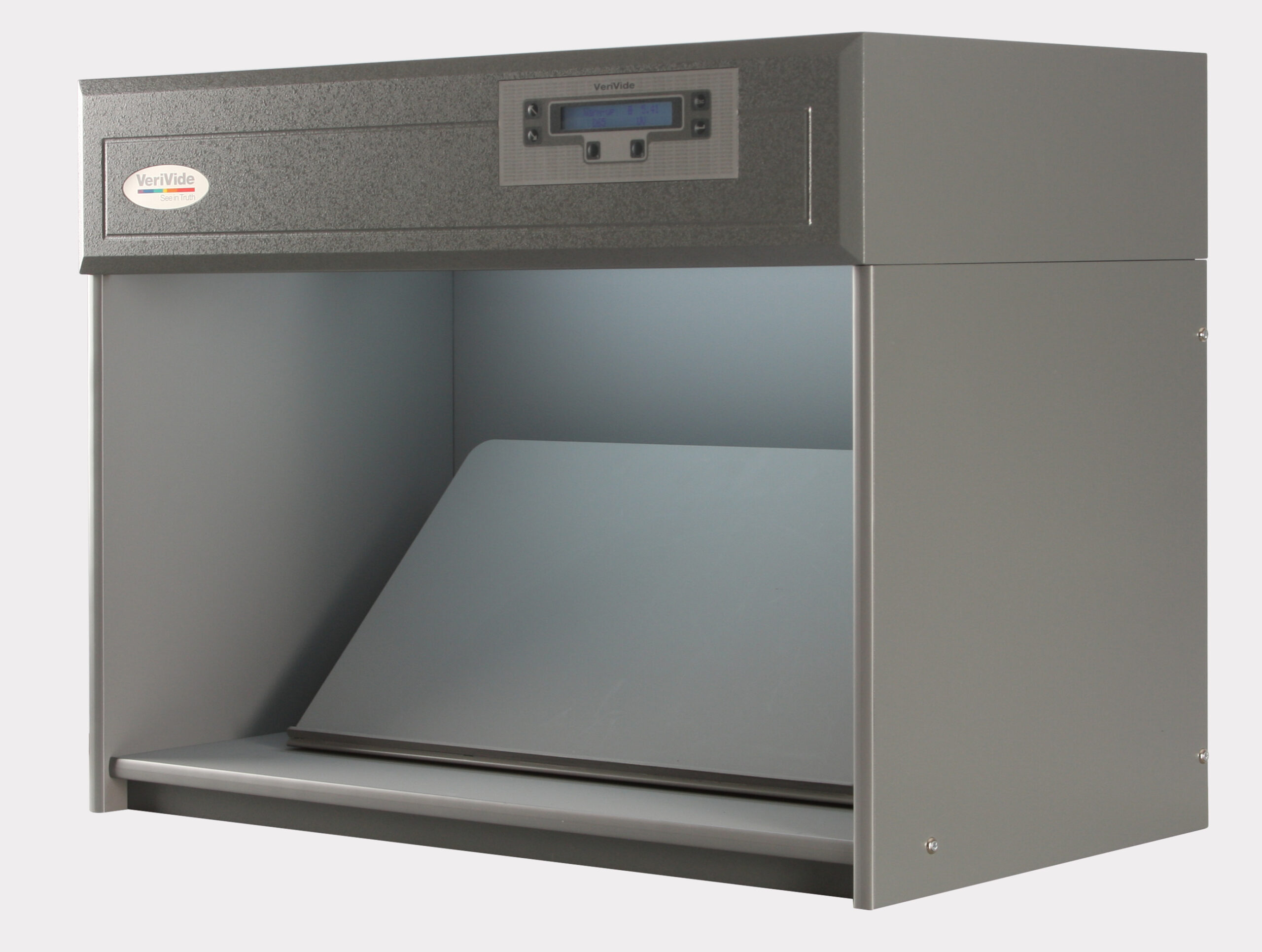

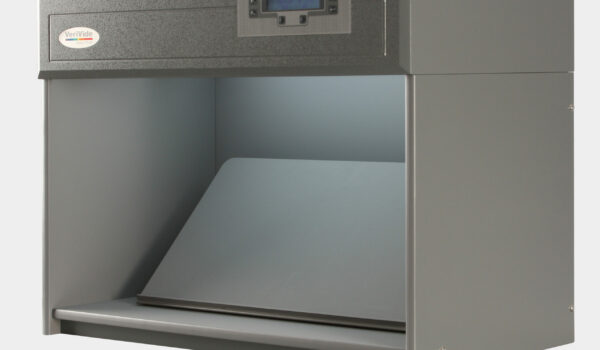

For consistent viewing conditions, the interior light booth is in neutral grey and comes with a VeriVide Fixed Angle Table to view the samples at 45 degrees under the standard light source.
The lamps are housed inside a white reflector and controlled by a digital control panel that includes a servicing indicator, backlit screen and data storage facility.

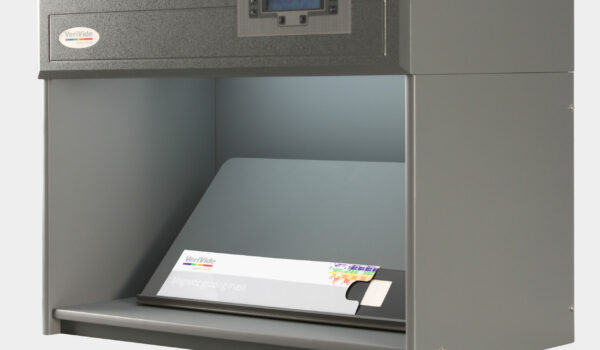

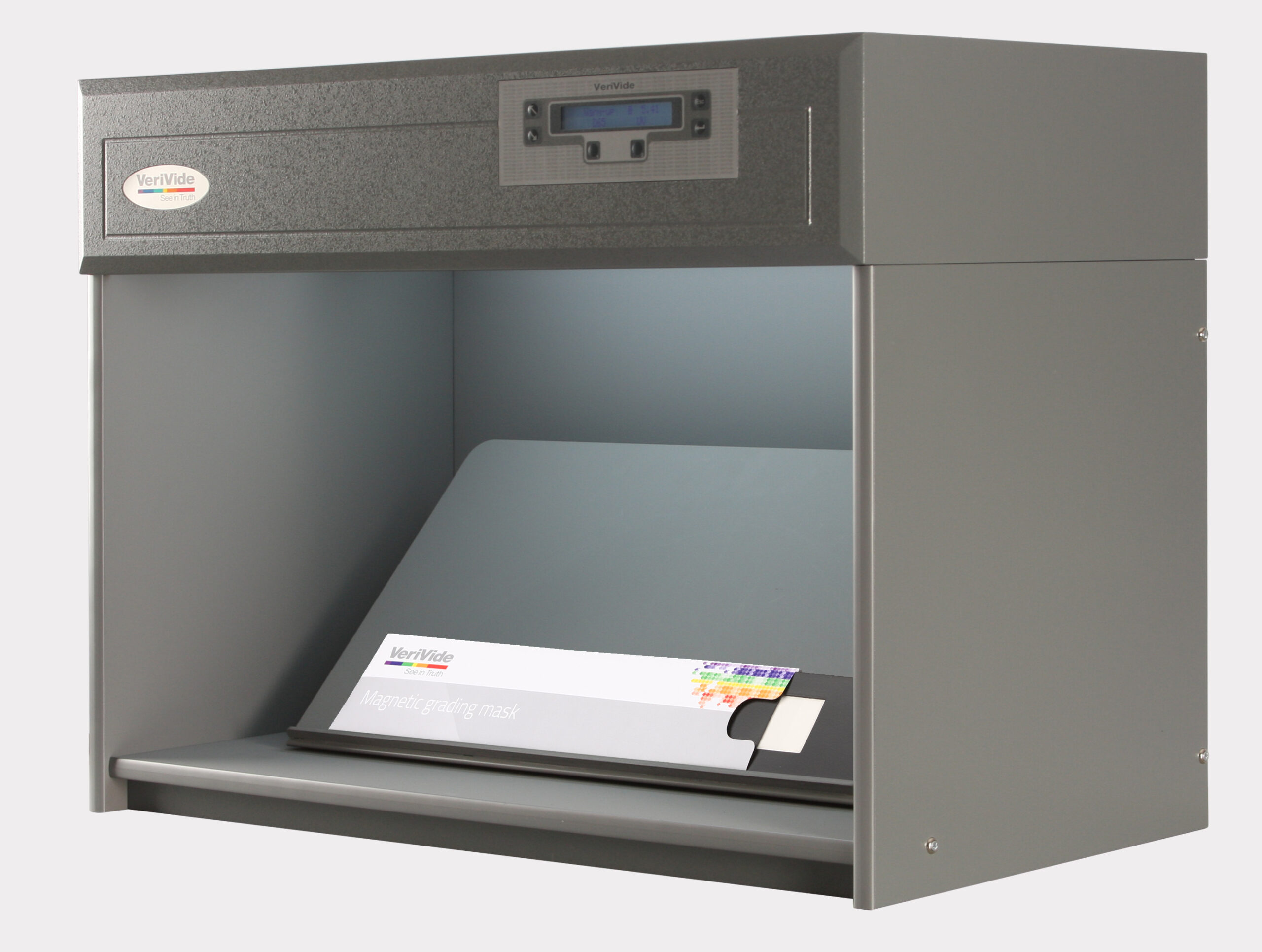

A VeriVide Magnetic Grading Mask is available to purchase as an optional tool.
Alternatively, VeriVide’s DigiGrade system can be used for digital colour fastness grading.

Features

  • Two light sources of the highest quality are fitted: VeriVide’s D65 Artificial Daylight according to CEI rating, and UV Black Light
  • VeriVide Fixed Angle Table supplied with magnets.
  • Grading mask is available on request
  • Additional fluorescent or LED point of sales illuminants are available if you require to use the Light Cabinet for colour fastness grading as well as for colour matching and assessment
  • Back light digital control panel with service indicator and data storage facility

Benefits

  • Colour Fastness Grading Cabinet meets or surpasses BS EN ISO 105 and retailer specifications.
  • Consistent viewing conditions for colour fastness grading.
  • Standardised and accurate lighting conditions available for colour matching and visual assessment
  • Easy and quick detection of fluorescent dyes and bleaches with the UV Black Light

Dimensions

CF 60

Dimensions (mm) Width Height Depth
Overall 710 545 420
Viewing Area 680 360 380

Extra Specification

  • Standards: BS EN ISO 105
  • Interior Colour options: Grey Munsell N5, Grey Munsell N7, VeriVide’s Grey 5574
