Luminaires

(click to switch excl/incl VAT)

Instant, flicker free illumination for accurate and objective visual assessment. Mimicking natural daylight, providing an optimised lighting environment to eliminate pattern formation and colour changes.

Download Download Brochure

A time elapsed meter helps schedule lamp replacement after 2000 hours

Choice of the voltage you require

Dimmable feature available to adjust the intensity of light

Standardised illuminants of your choice; D65, D50 or a P.O.S. lighting

Aerospace
Automotive
Building Materials
Medical & Pharmaceutical
Packaging
Paints & Coatings
Photography
Plastics

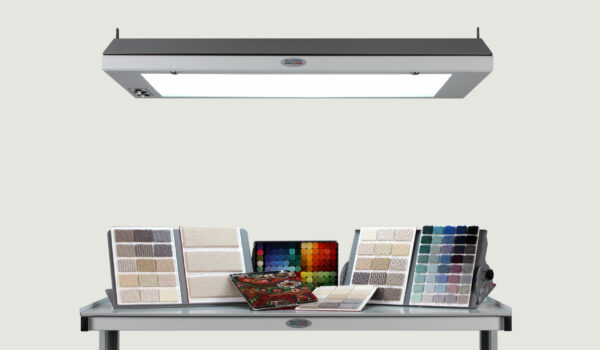

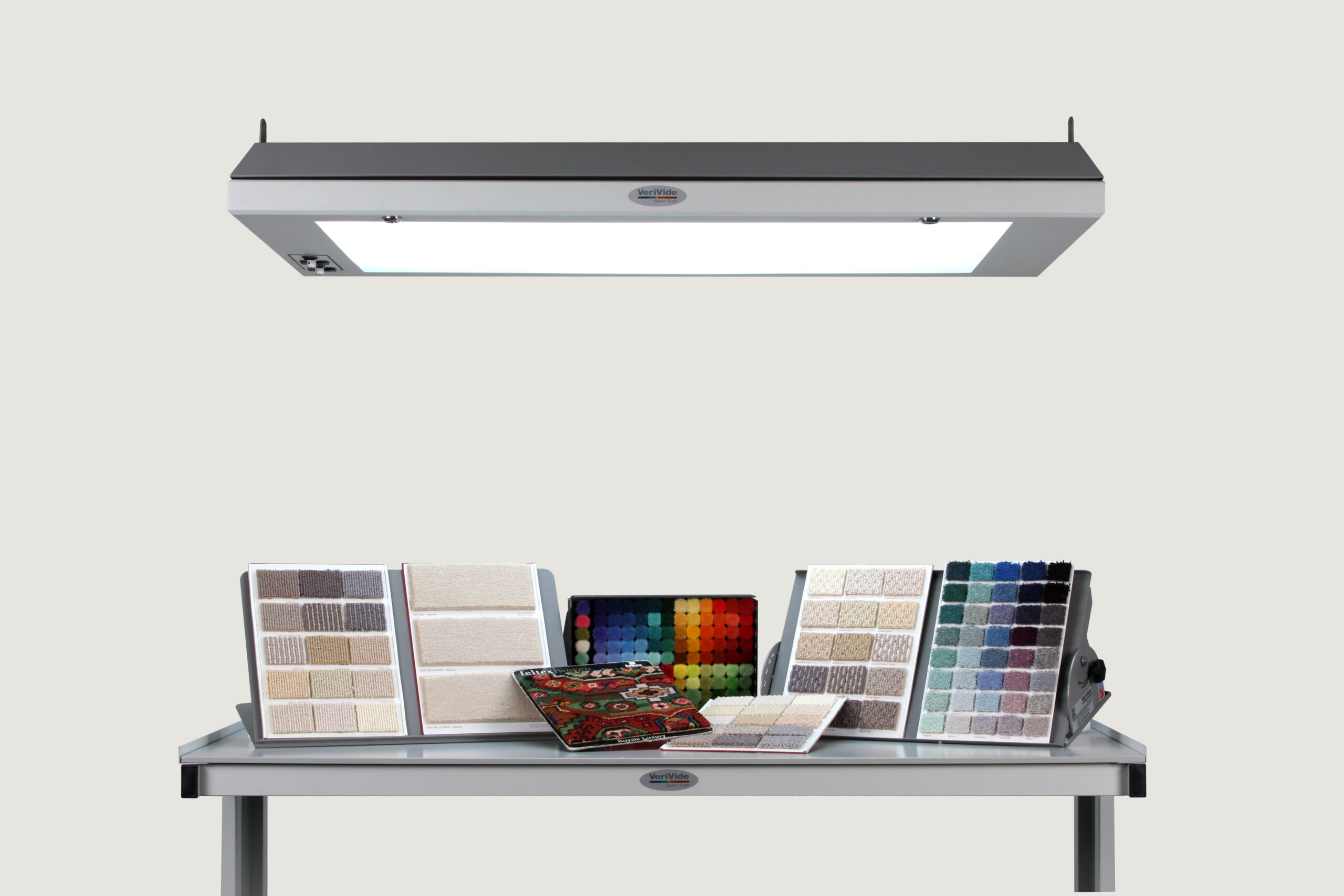

Designed to provide optimised lighting environments for medium-size or large-scale productions and manufacturing plants, the VeriVide Luminaire (VL) mimics natural daylight for accurate and objective visual assessment.

Test Methods & Standards

Firstly, Luminaires comes with either the VeriVide D65 artificial daylight conforming to ISO 23603 CIES012/E standards or the VeriVide D50 light source conforming to BS950: part 2 and ISO 3664.  Furthermore, additional point of sales fluorescent lighting can be supplied.

Secondly, Luminaires are fitted with four suspension brackets and a glare-free reflector and can be installed or positioned at any angle. The opal diffuser and white reflector provides consistent even illumination across the viewing area for accurate visual examination, eliminating pattern formation or colour changes in the emitted light.

Industries & Applications

Most medium-size or large-scale production and manufacturing plants would benefit greatly from the VeriVide Luminaire. For instance, a linked Luminaire system is available for colour and appearance assessment of assembled items such as automobiles, furnishing and technical textiles, or products manufactured in large factories, such as can, glass or metal packages.

Options

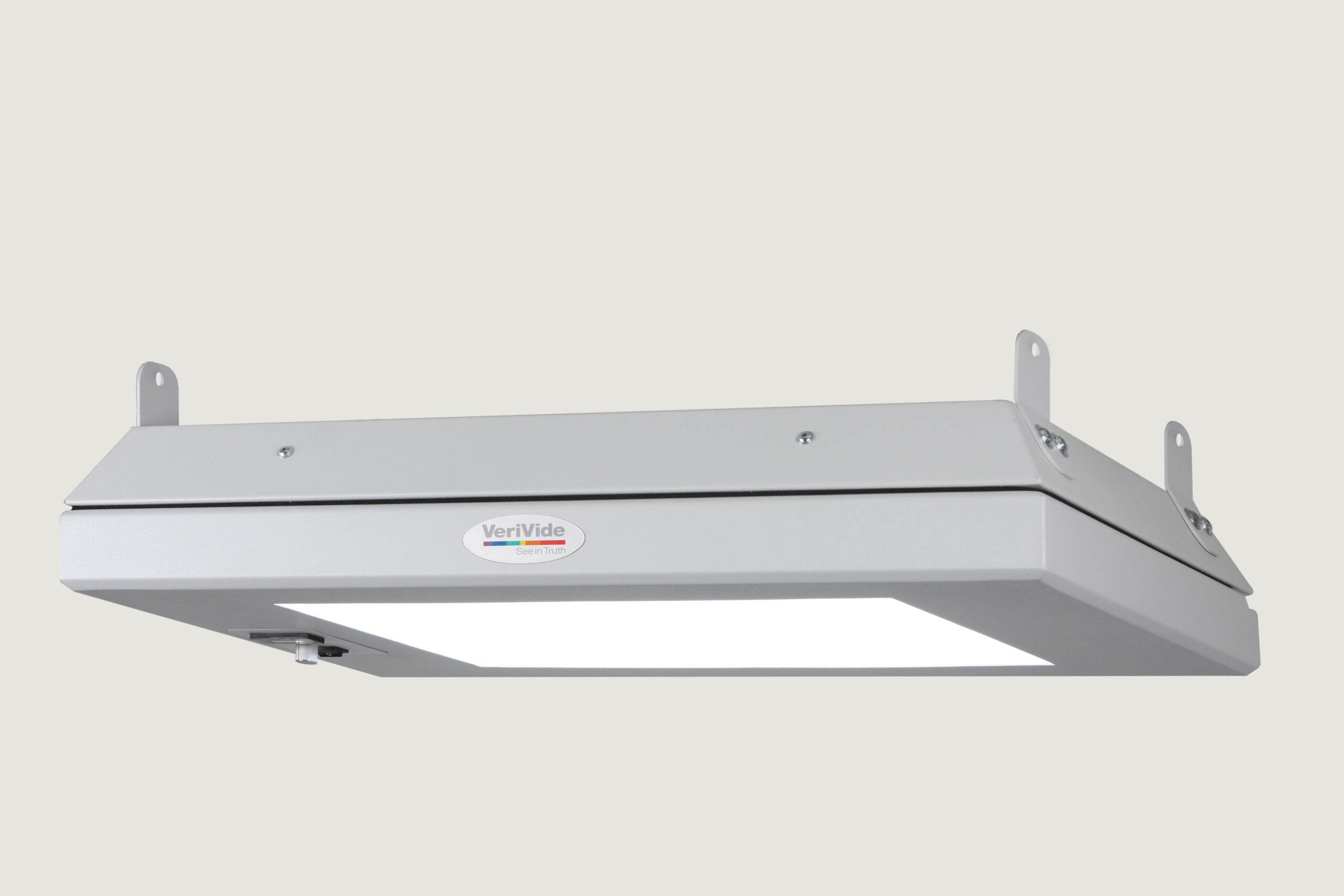

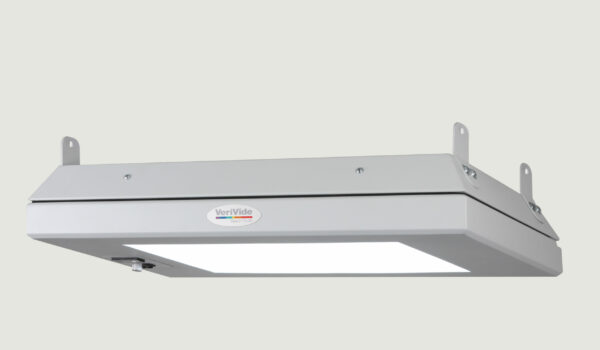

VeriVide’s Luminaires are available in two widths: 710mm (VL60) and 1335 mm (VL120). Units are supplied with a dimmable feature to adjust the brightness.

Features

  • Single light source is available in VL60 (710mm Width) and single or dual light sources are available in VL120 (335 mm Width)
  • Standardised illuminants of your choice; D65, D50 or a P.O.S. lighting
  • Dimmable feature available to adjust the intensity of light
  • Choice of the voltage you require
  • A time elapsed meter helps schedule lamp replacement after 2000 hours.

Benefits

  • Standardised large viewing environment adhering to ISO 23603, ISO 3664 and BS950: part 2 standards
  • Accurate visual assessment with evenly distributed lighting across the viewing area

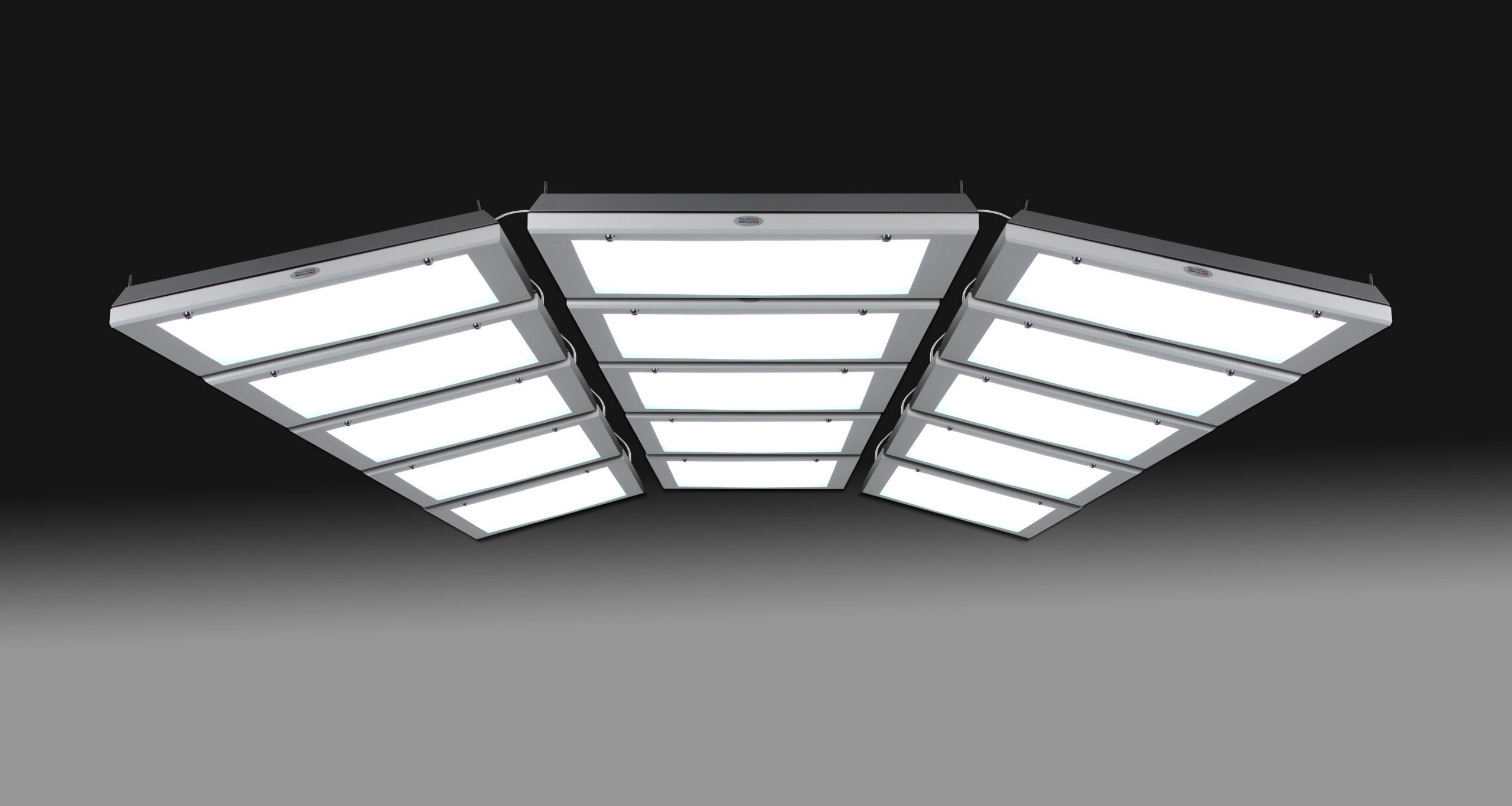

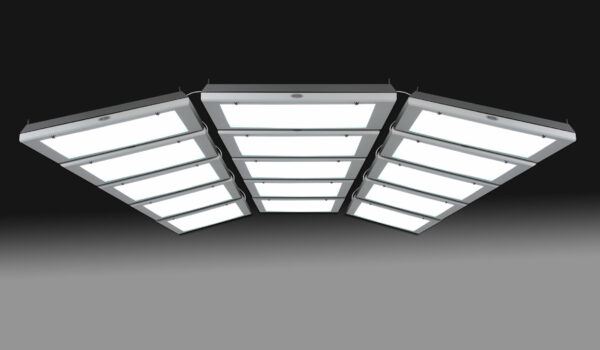

  • Linked Luminaire system provides control up to 15 secondary units from one primary Luminaire
  • High frequency electronic ballasts, enabling an instant, flicker free illumination.

Datasheets

VeriVide Luminaires Datasheet Download

Extra Specification

  • Standards: ISO 23603 CIES012/E, ISO 3664 and BS 950 Part 2
  • Colour temperature of D65: 6500K
  • Colour temperature of D50: 5000K
