AATCC Viewing Board (AATCC-VB)

(click to switch excl/incl VAT)

In line with global textile industry standards, examine and evaluate textiles effectively, assessing smoothness and crease retention in fabrics. Add wheels for user ease and effortless relocation.

Standardized lighting conditions and viewing area conformed to AATCC test methods

Mobile stand with wheels is available for easy relocation

Apparels
Homeware
Technical Textiles

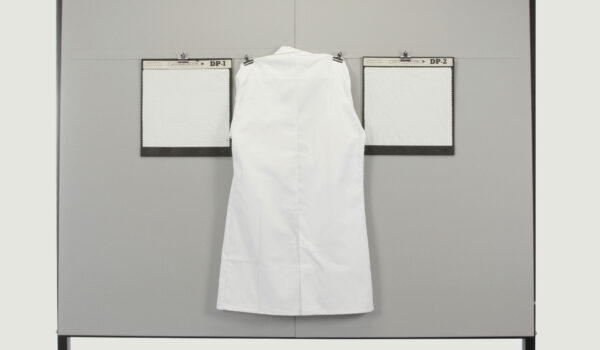

The VeriVide AATCC Viewing Board is ideal for fabric evaluation and grading, manufactured in compliance with the approved test methods 88B/88C/124/128/143/178 of the American Association of Textile Chemists and Colorist (AATCC). Designed specifically for smoothness evaluation of flat fabric and seams, the retention of pressed creases after laundering can be also examined for textiles and apparels in the AATCC Viewing Board. VeriVide 1200mm (4ft) Cool White Fluorescent (CWF) illuminates are used in the Viewing Board (as per section 12.4 of certain AATCC test methods). The standardised viewing area allows to rate the appearance of specimens alongside the reference standards. The stand is optional and available for purchase at the same time with the AATCC Viewing Board, enabling the user to move the Board in multiple locations. Otherwise, the AATCC Viewing Board can be fitted to a wall.

Features

  • VeriVide 1200mm (4ft) Cool White Fluorescent (CWF) lamps are incorporated (as per section 12.4 of most AATCC test methods).
  • Accurate comparison of fabric specimens against appropriate reference standards under the standardised lighting area.
  • Mobile stand with wheels is available for purchase for easier relocation of the AATCC Viewing Board

Benefits

  • Standardized lighting conditions and viewing area conformed to American Association of Textile Chemists and Colorist (AATCC) 88B/88C/124/128/143/178 test methods.
  • Effective evaluation of smoothness in the appearance of flat fabric and seams
  • Effective examination of pressed crease retention after repeated laundering of the textiles and apparels.

Dimensions

AATCC Viewing Board (Wall Mounted)

Dimensions (mm) Width Height Depth
Overall 1830 1830 270
Viewing Area 1830 1830 270

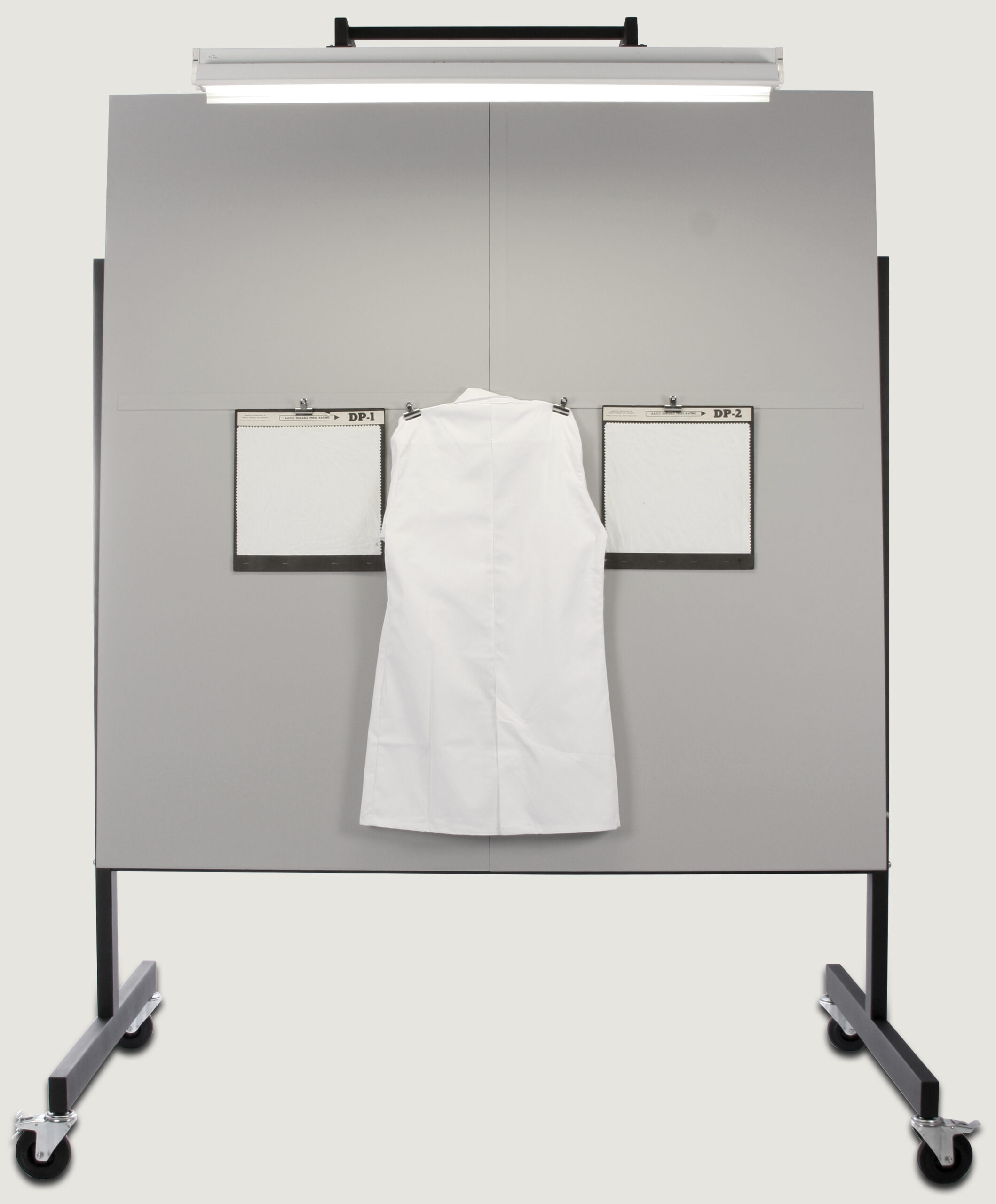

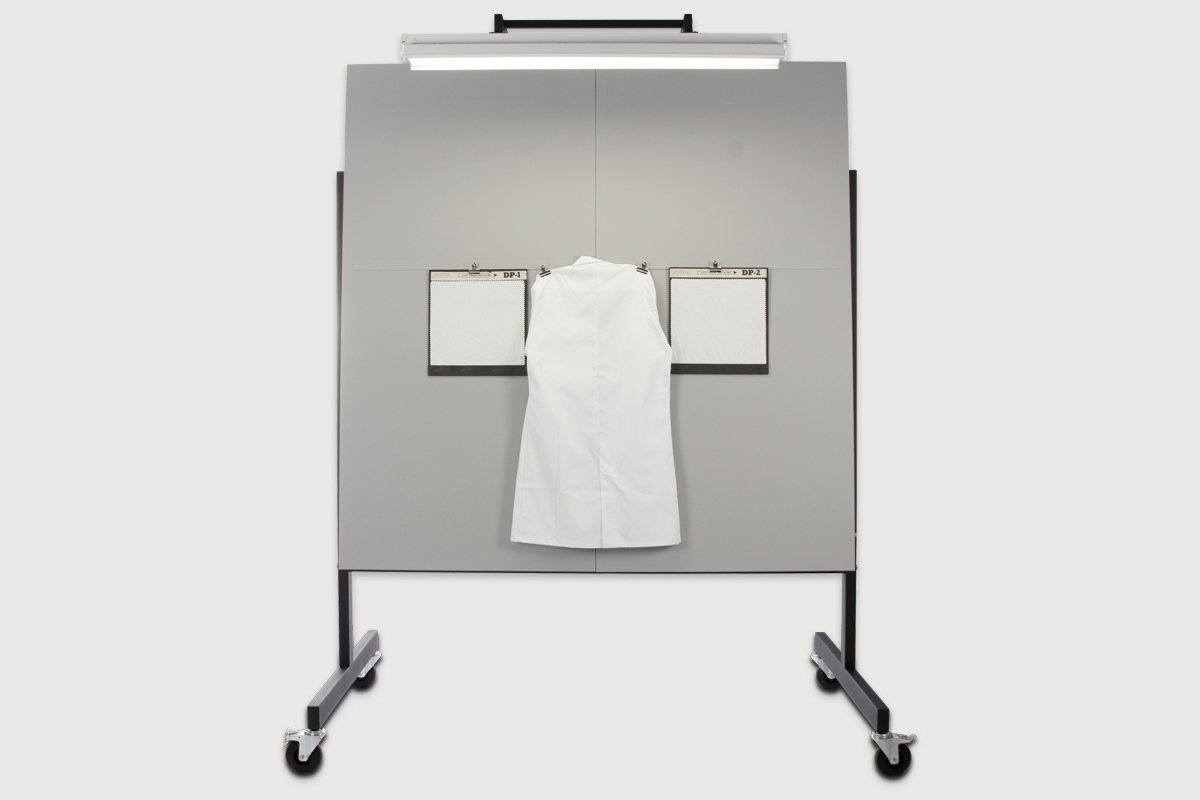

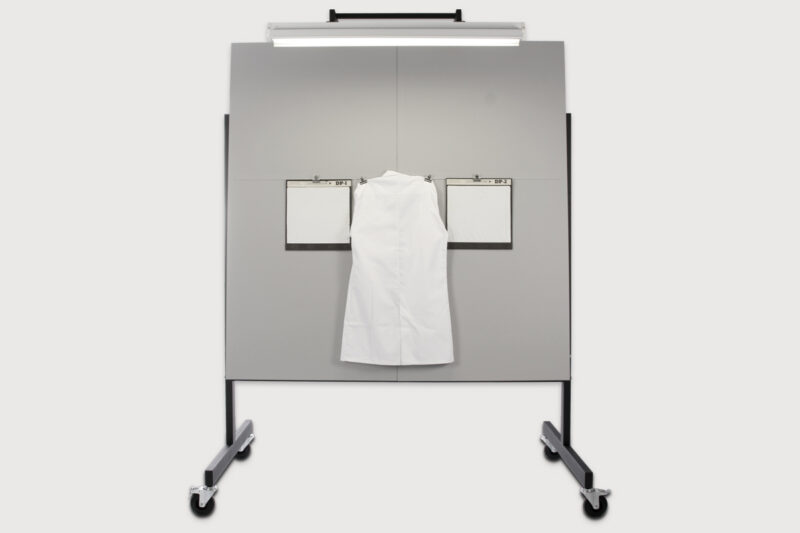

AATCC Viewing Board (Mobile)

Dimensions (mm) Width Height Depth
Overall 1940 2445 1360
Viewing Area 1830 1830 270

Datasheets

Accessories Download
Textile Testing Range Download

Extra Specification

  • Standards: AATCC 88B/88C/124/128/143/178 test methods
  • Certain test methods may require additional LED floodlight and light shield, which VeriVide can provide when requested
